Hybrid Instrument Cluster Overview
The Instrument Cluster LCD screen displays the following system modes to inform the driver of its status. To change modes, go to Vehicle Settings in the Infotainment System.

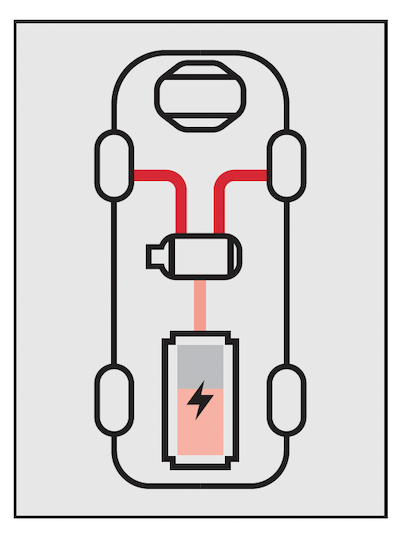

EV Propulsion - The electric motor is moving the vehicle.

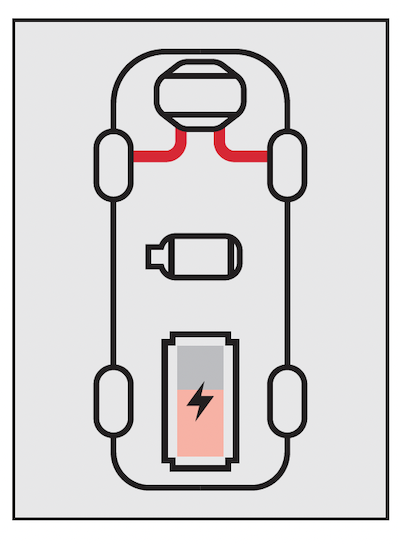

Engine-Only Propulsion - The engine is moving the vehicle.

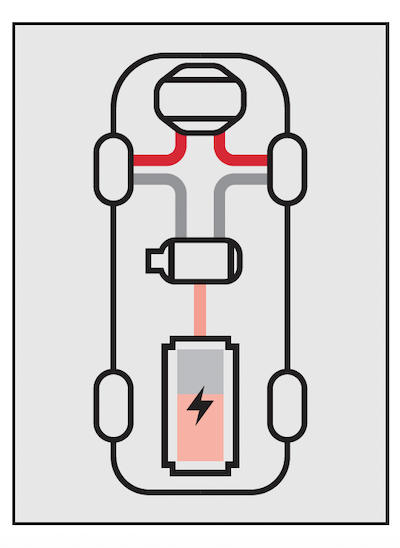

Power Assist - Both the electric motor AND the engine are moving the vehicle.

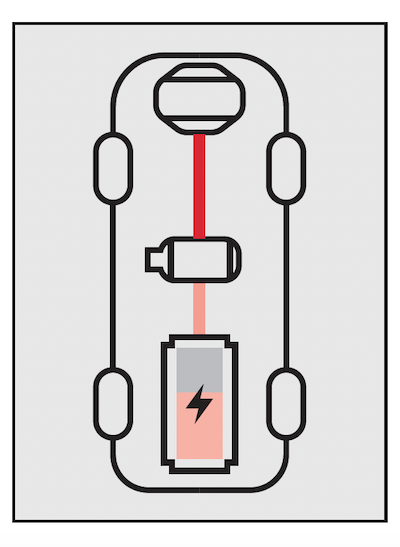

Engine Generation - While the vehicle is stopped, the engine is charging the Plug-In battery.

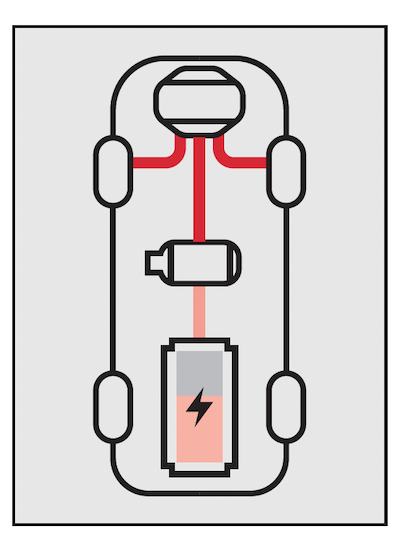

Power Reserve - While the engine powers the vehicle, it is also recharging the Plug-In battery.

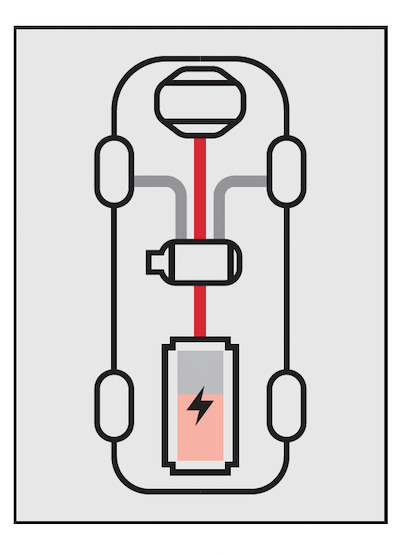

Engine Brake/ Regeneration - The regenerative braking system is recharging the Plug-In battery.

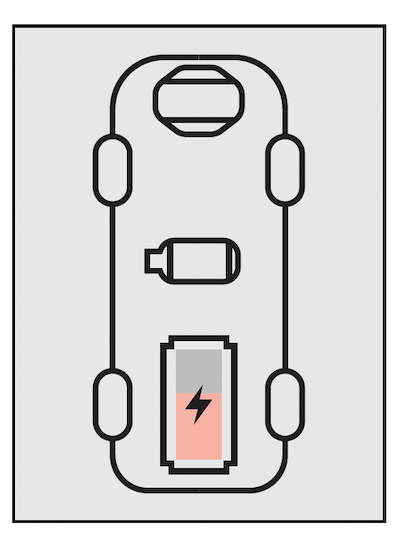

Vehicle Stop - The vehicle’s Plug-In system is standing by.

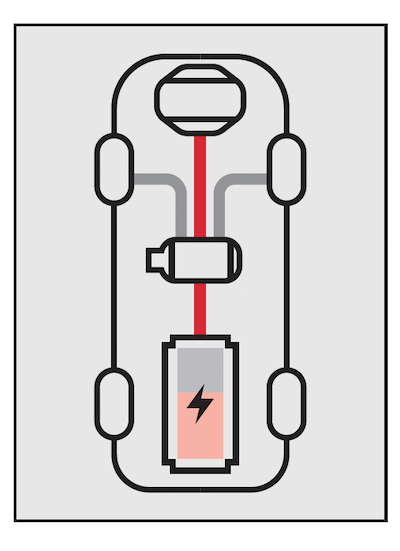

Engine Generation/ Regeneration - The engine and the regenerative braking system are both recharging the Plug-In battery.
Your vehicle’s Instrument Cluster & indicator light locations may differ from those in the illustrations. For more information on the Instrument Cluster, please refer to section 1 in the Owner’s Manual.
These illustrations are for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
