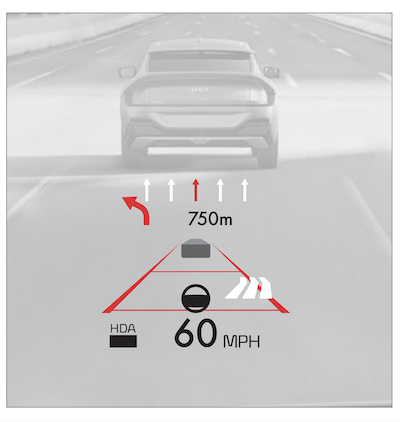

Augmented Reality Head-Up Display (HUD) is a semi-transparent display that is designed to project a snippet of information from the Instrument Cluster and Navigation System onto the windshield glass.

When in augmented reality mode, HUD shows:

Turn By Turn (TBT) navigation information
Traffic information
Speedometer information
SCC set speed information
SCC Vehicle Distance information
Blind-spot Safety information
Highway Auto Speed Change information*
Lane Safety
Highway Driving Assist information*
Lane Following Assist
Augmented Reality Mode information for TBT, Lane Safety, Front Vehicle indicator*, Leading Vehicle Departure Alert, Highway Lane Change

Head-Up Display (HUD) Settings:

Drivers can adjust the HUD settings fromthe Vehicle Settings. Press the SETUP key/button on the Infotainment System.

Select VEHICLE, then HEAD-UP DISPLAY. HUD settings include:

Display Height: Adjust the height of the HUD image on the windshield glass
Augmented Reality Matching Adjustment: Adjusts the position of the content
Brightness: Adjust the intensity of the HUD brightness

Reminders:

The HUD image on the windshield glass may not be visible in these cases:

The driver has poor sitting posture
The driver is wearing polarized sunglasses
There is an object covering the HUD
The driver is driving on a wet road
There is excessive lighting inside or outside the vehicle
Modifications made to the windshield, such as tinting or other aftermarket treatments, could affect the HUD. When replacing the front windshield glass of vehicles equipped with the HUD, owners must replace it with windshield glass designed for HUD operation. Otherwise, duplicated images may be displayed on the windshield glass
If Turn By Turn navigation information is selected as HUD content, TBT information will not be displayed on the LCD
