The HomeLink® / Auto-Dimming Rearview Mirror* is designed to reduce glare from a vehicle’s headlights located in the rear and also connect up to three electronic transmitters into one location.

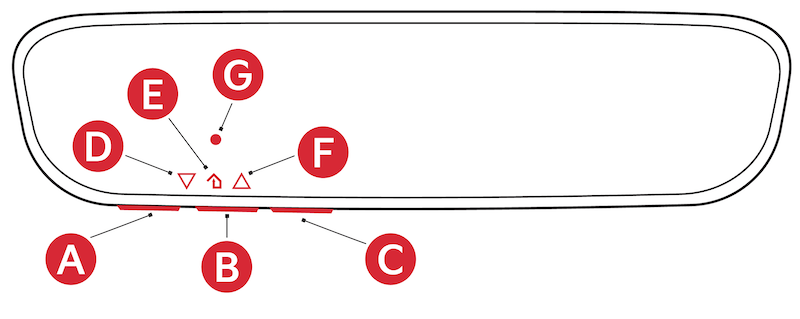

HomeLink® Channel 1

HomeLink® Channel 2

HomeLink® Channel 3

Garage Door Opener Status Indicator: Closing or Closed

HomeLink® Operation Indicator

Garage Door Opener Status Indicator: Opening or Open

HomeLink® User Interface Indicator

If programming for the first time, begin with Step 1 (repeating this step will delete all information).

To program non-rolling and rolling code garage door openers and other devices:

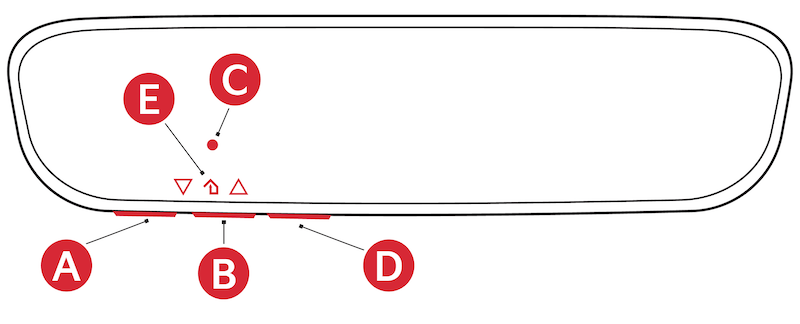

1. Press and hold the left and center buttons simultaneously until the indicator light begins to flash (to reprogram buttons, skip this step)
2. Press and hold the desired button and hold the button on the transmitter while it is approximately 1 to 3 inches away from the mirror. The HomeLink® Indicator light will flash rapidly once the frequency signal has been successfully programmed
   To finish programming rolling code garage door openers, complete these steps:
3. Locate the “learn” or “smart” button on the garage door’s motor head unit. Press and release the button and complete Step 4 within 30 seconds
4. Firmly press and release the programmed HomeLink® button up to three times

Press one of the programmed HomeLink® buttons.

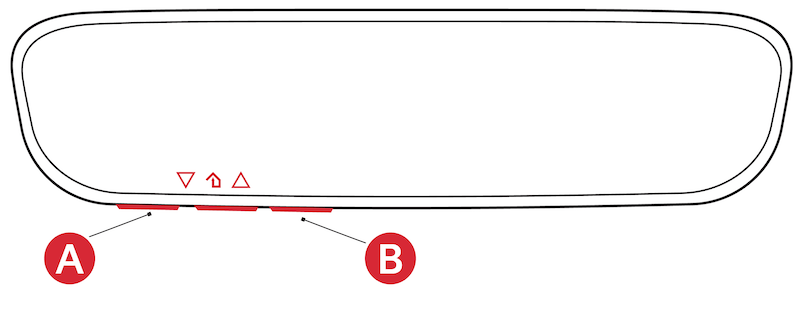

Press and hold the Channel button and buttons simultaneously for approximately 20 seconds, and then release both buttons within 30 seconds.
