Kia Connect with Navigation

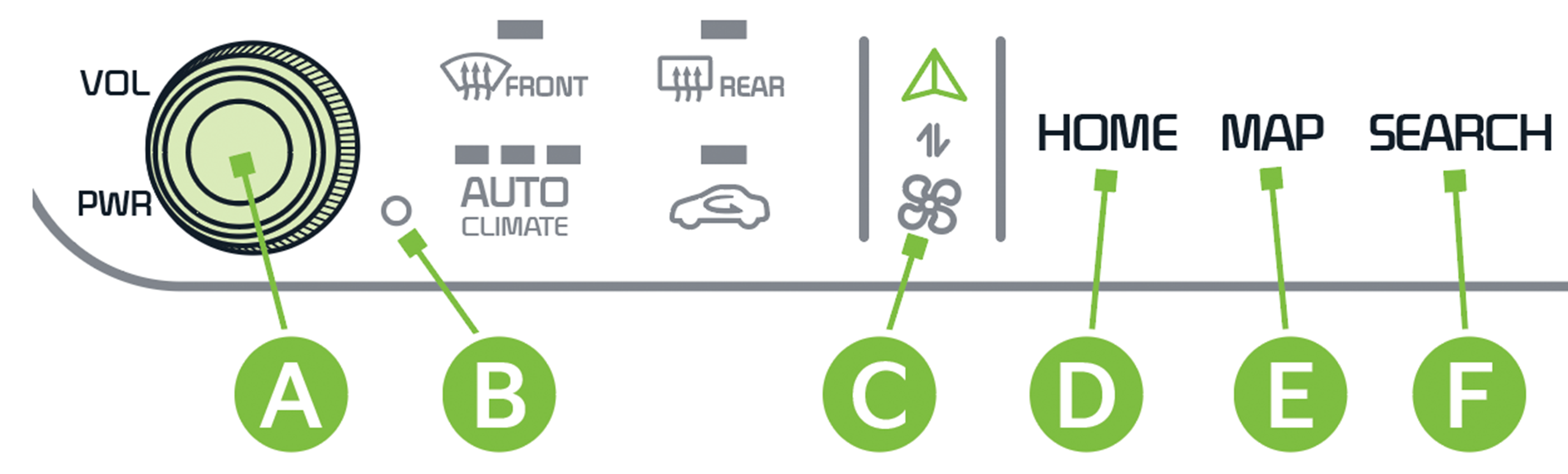

Press to Power ON/OFF. Rotate to adjust Volume
Restarts the system
Infotainment System / Climate Control mode switching button
Press to navigate HOME. Press and hold to turn on or off the Quick Control function
Press the MAP button to return to the current map location. When receiving guidance on the map screen, press to repeat voice guidance
Press to display the Search screen
Press briefly to do the following:
Press and hold to the do the following (over 0.8 seconds):

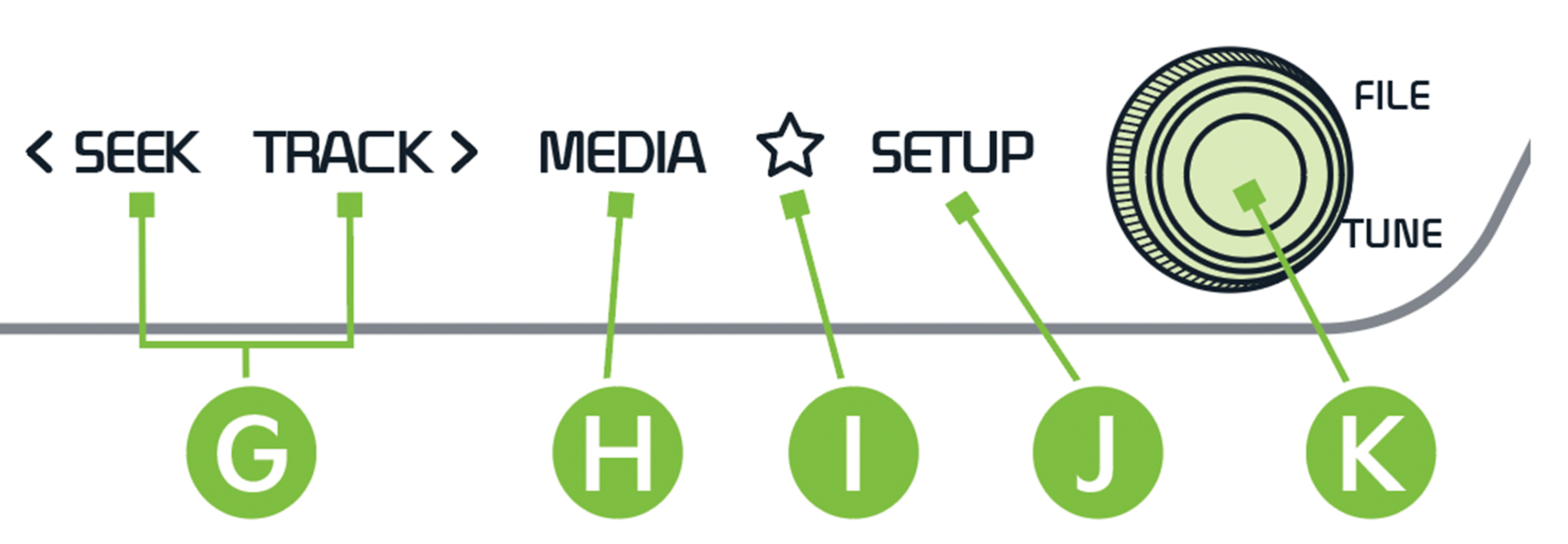

Press to run the connected media. Press and hold to display the Media Home Screen
Press to display the user-defined function. Press and hold the Custom STAR button to display the function settings screen
Press to display SETUP/Settings mode. Press and hold to display the version information screen
In Radio/SiriusXM®/ Media modes, rotate knob to search for stations/ channels/tracks/songs/files. While on the Map screen, zoom in or out on the map

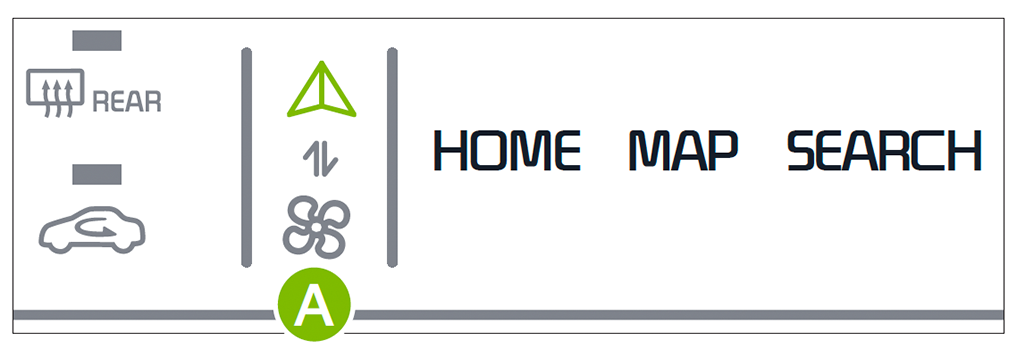

Press to toggle between Infotainment System and Climate Control Modes. Press and hold the Switchable Controller button to set the default button display mode
To adjust the sound settings: Press the SETUP key on the Infotainment System and select SOUND.
Radio Presets: To save a preset, press the ADD STATION button.
SiriusXM® Smart Favorites: In Radio mode, choose SiriusXM®, then select any of the first ten favorites, and during song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast.
****

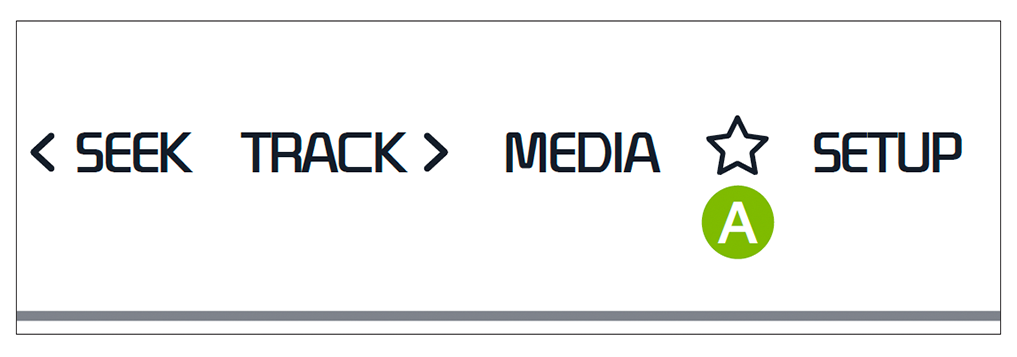

Custom Key
: To program the Custom Button to one of the available features, press and hold the Custom Button . Select one of the available features you would like the Custom Button to open.
Map/software updates - To keep your map and software up to date, visit the official Kia update webpage at https://update.kia.com/US/EN/Main.
Note, visiting a dealer for a software update may include an additional charge.
— When switching between audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
— When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
*See LEGAL page for legal information
Some features may not be available on all Kia models.
For further Kia Connect with Smart Navigation operations, refer to the Car Infotainment System Quick Reference Guide. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. Images are for illustrative purposes only and may not reflect actual feature or operation.
