Lane Keeping Assist (LKA)
Lane Keeping Assist is designed to detect the lane markers on the road or the road edges, and may assist the driver’s steering to potentially help keep the vehicle in the lane.
When turned on, the Instrument Cluster indicator will initially illuminate white. It will remain white when the vehicle is traveling slower than 40 mph or when LKA does not detect the lane markers.
When LKA detects the lane markers and can assist the steering, the LKA icon will illuminate green.
If LKA detects that you are moving outside of your lane, LKA may give an audible warning and display a Lane Departure Warning on the Instrument Cluster.
If the vehicle continues to move outside of the lane, LKA may provide steering inputs, trying to prevent the vehicle from moving outside its lane.

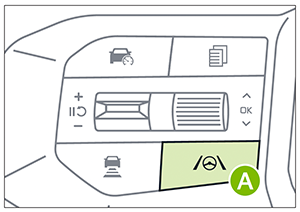

**When LKA is enabled, press and hold the Lane Safety button **
to turn LKA on or off.
LKA Settings:
- To enable LKA, press the SETUP key/button on the Infotainment System. Select the VEHICLE button to enter the Vehicle Settings. Select DRIVER ASSISTANCE then LANE SAFETY.
- Warning Methods: To adjust the WARNING VOLUME: Press theSETUP button to go to VEHICLE SETTINGS on the InfotainmentSystem. Press VEHICLE, DRIVER ASSISTANCE, and under WARNINGMETHODS, you can adjust WARNING VOLUME, and turn HAPTICWARNING and DRIVER SAFETY PRIORITY on or off
When the front-view camera does not detect the lane markers, they are displayed gray
When the front-view camera detects the lane markers, they are displayed white
When the front-view camera detects the vehicle moving outside of the lane being traveled in, a yellow marker will illuminate either on the left or right lane (shown in both images above)
LKA will operate under the following conditions:
- The vehicle speed exceeds approximately 40 mph
- LKA detects the lane the vehicle is traveling in
- The vehicle is between the lane markers
Quick Tips:
Adjusting the Warning Timing and Warning Methods or Volume will adjust settings for other driver assistance systems.
Reminders:
LKA will not issue a warning if the turn signals or hazard lights are activated.
*See LEGAL page for legal information
This feature may not be available on all Kia models. Refer to section 7 in the Owner’s Manual for more information.
Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
Lane Keeping Assist is not a substitute for safe driving and may not always alert the driver if the vehicle is driven outside of its lane. Always drive safely and use caution.
