Surround View Monitor (SVM)
Surround View Monitor uses the wide view cameras and displays images around the vehicle through the Infotainment System screen to assist with parking.

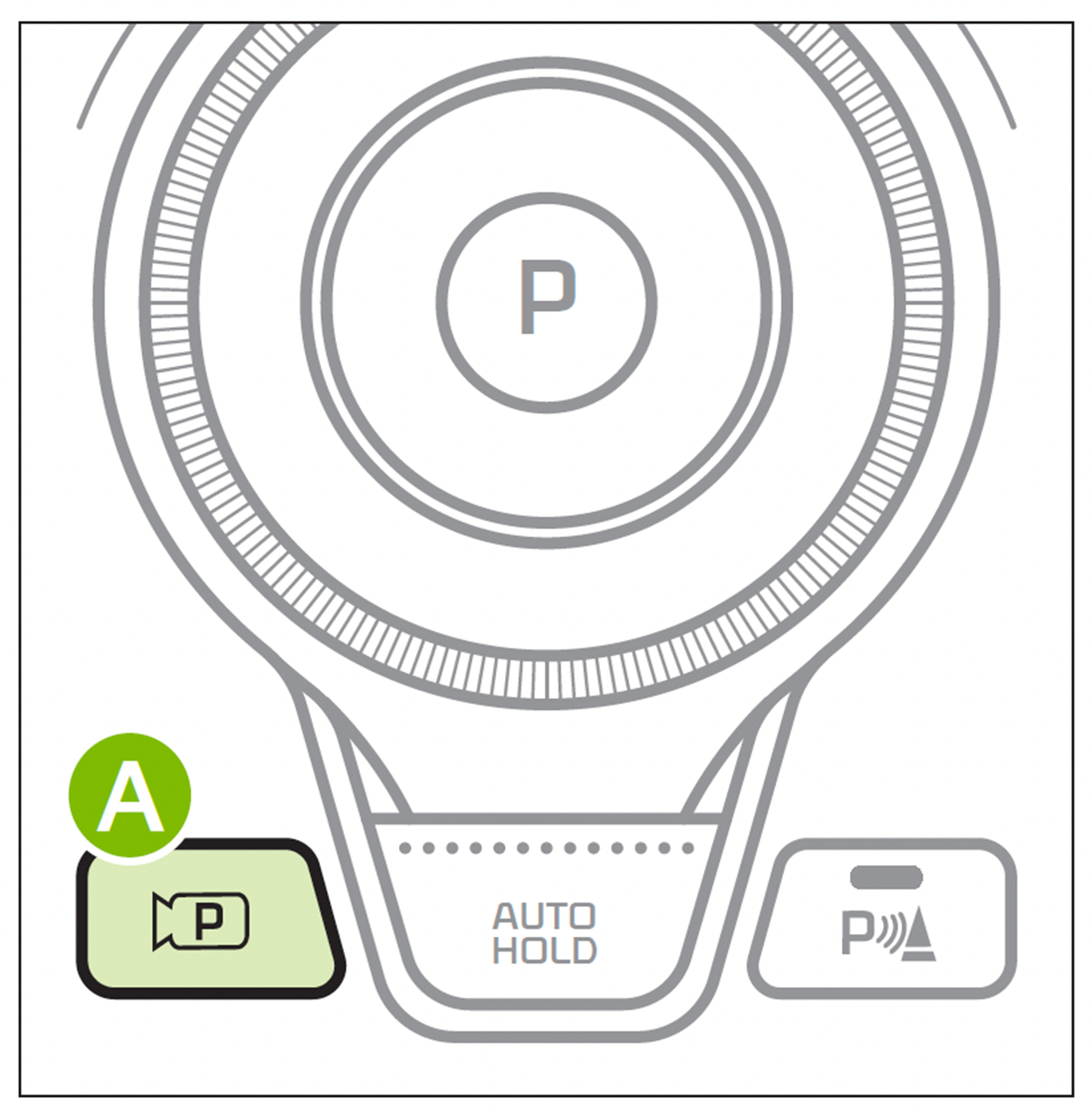

- Press the Parking/View button
or shift into reverse to turn on Surround View Monitor

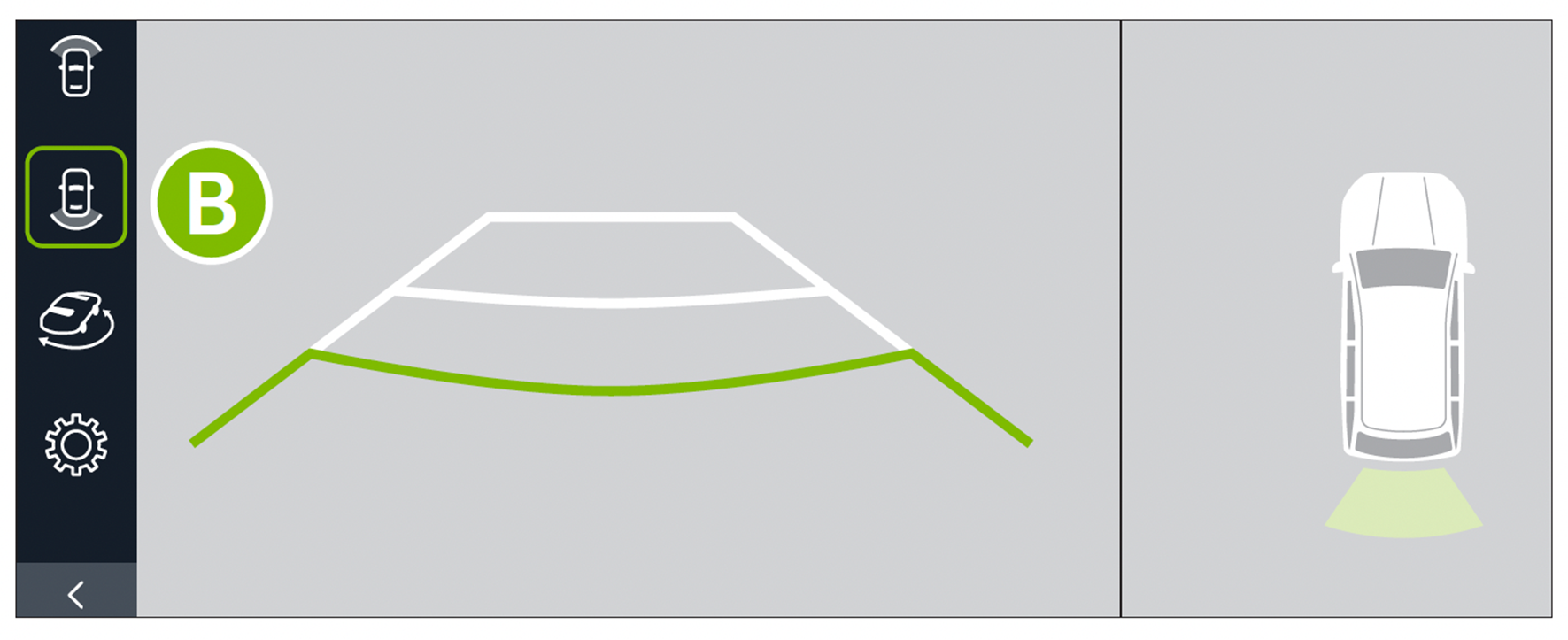

- Other view modes can be selected by touching the view icons
on the Surround View Monitor screen
- Surround View Monitor Auto On: With Driver Assistance → Parking Safety → Surround View Monitor Auto On selected from the Vehicle Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver Rotary Dial Shifter is in Drive
- **To access Warning Methods: **To adjust the WARNING VOLUME: Press the SETUP button to go to VEHICLE SETTINGS on the Infotainment System. Press VEHICLE, DRIVER ASSISTANCE, and under WARNING METHODS, you can adjust WARNING VOLUME, and turn HAPTIC WARNING and DRIVER SAFETY PRIORITY on or off
SVM settings:

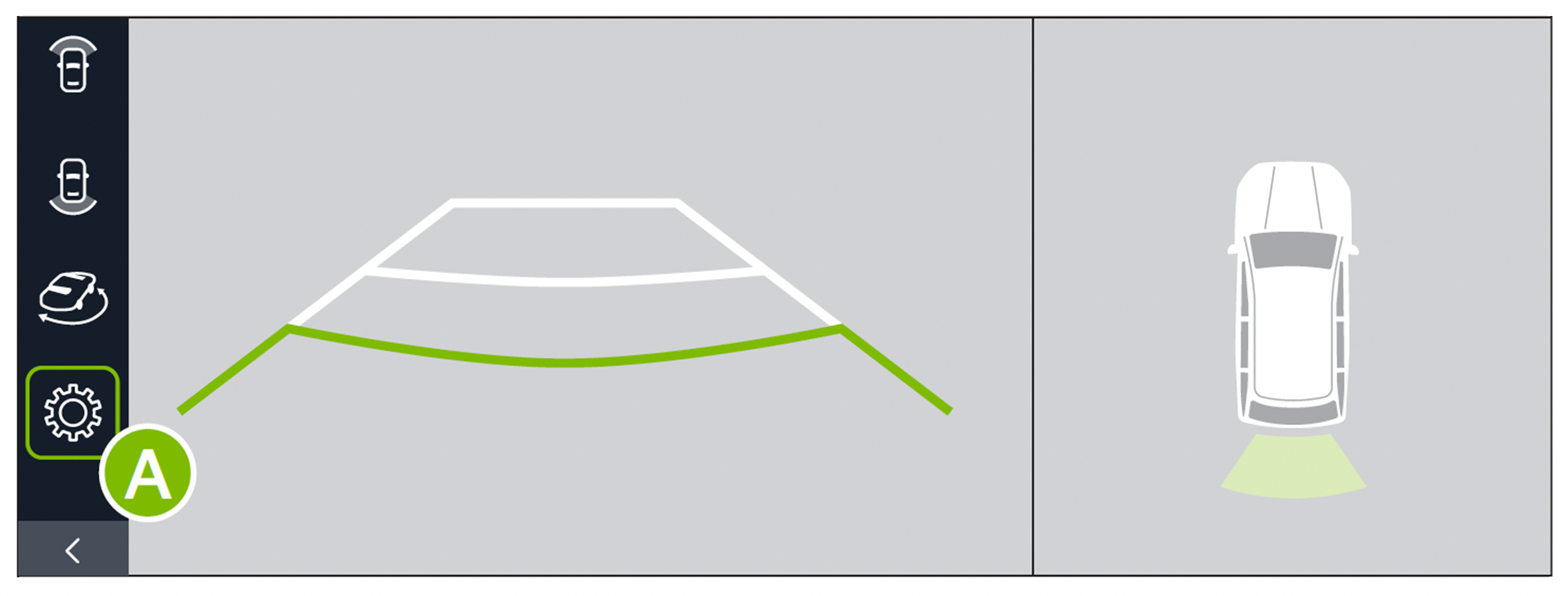

To change the SVM settings, press the onscreen Settings icon
while SVM is operating or pressing SETUP, on the Infotainment System, select Vehicle, Driver Assistance, Parking Safety and Camera Settings.
Quick Tips:
- The Front View of SVM will turn off when the Rotary Dial Shifter is moved into Park or Reverse or the Parking/View button is pressed.
Reminders:
- The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance
- You can also select PARKING SAFETY PRIORITY so the audio system volume will lower while SVM is activated
- Through normal use and after inclement weather or washing, the rear camera may become dirty or obstructed. Use a clean, microfiber cloth to remove any dirt, debris or spots that have accumulated on the lens
- Adjusting the Warning Methods will adjust settings for other driver assistance systems
*See LEGAL page for legal information
This feature may not be available on all Kia models.
Images are for illustrative purposes only and may not reflect actual feature or operation. See
The Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay attention and directly check the left/right and rear.
section 7 in the Owner’s Manual for more information
