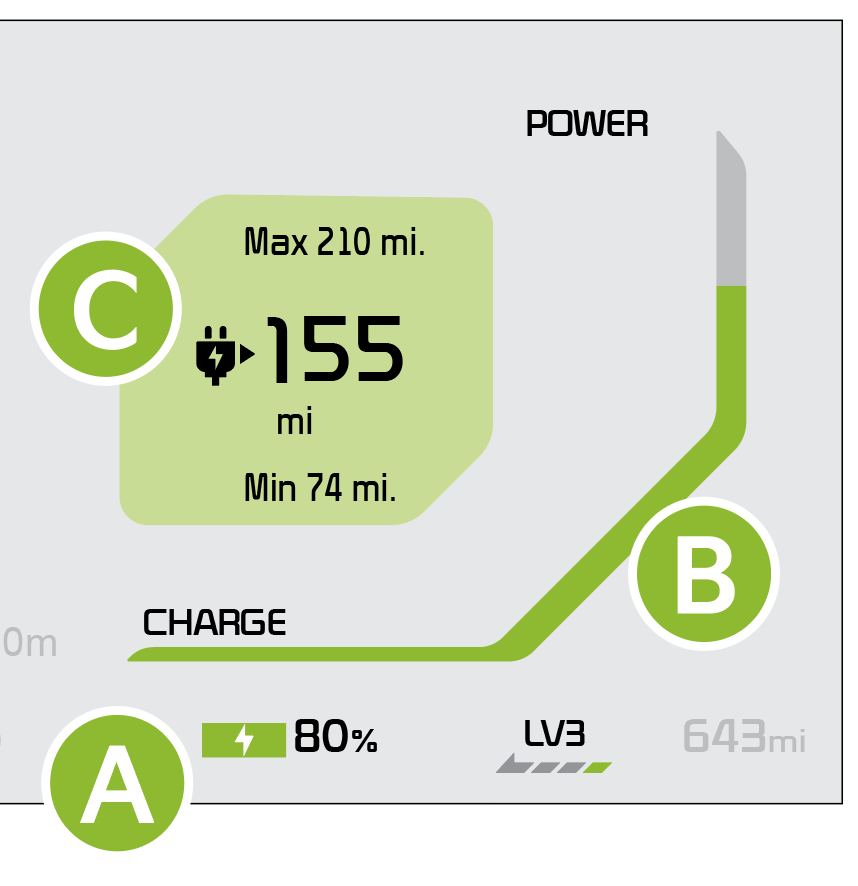

Battery State of Charge (SOC) Gauge

The State of Charge gauge displays the high-voltage battery charge status.

Power / Charge Gauge

The Power / Charge gauge provides information on the energy consumption rate of the vehicle and the charge status of the regenerative brakes.

• POWER – Shows the energy consumption rate of the vehicle when driving uphill or accelerating. The more electric energy used, the higher the gauge level
• CHARGE – Shows the charging status of the battery when it is being charged by the regenerative brakes. The more electric energy charged, the lower the gauge level

Distance to Empty (DTE)

DTE is the estimated distance the vehicle can be driven with the remaining high-voltage battery level. The DTE will vary according to the selected drive mode and Climate Control settings.

Ready Indicator – Illuminates when the vehicle is ready to drive.

When the ready indicator light is blinking, the vehicle has detected a possible malfunction. Have an authorized Kia dealer address the concern as soon as possible.

EV Service Indicator – Illuminates when there is a malfunction related to the electric vehicle control system. Have an authorized Kia dealer address the concern as soon as possible.

Power Down Indicator – Illuminates when the vehicle’s speed and performance are limited for the safety of the electric vehicle.

Charging Indicator – Shows the charging status of the high-voltage battery. When charging, the green indicator turns on. The indicator turns off when not charging.

High Voltage Battery Low Level Warning Light – Illuminates when the high-voltage battery charge level is insufficient.

Regenerative Brake Warning Lights – Both lights illuminate when the regenerative brake system is not functioning correctly.
