FULL DISPLAY MIRROR (FDM)

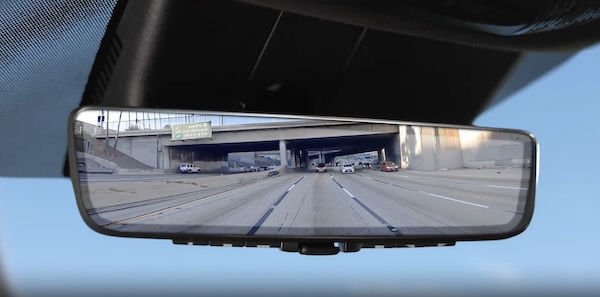

The Full Display Mirror® (FDM)® is a 9.6- inch wide conventional optical and digital mirror.

To switch between optical and digital (camera view) modes, push or pull the lever .

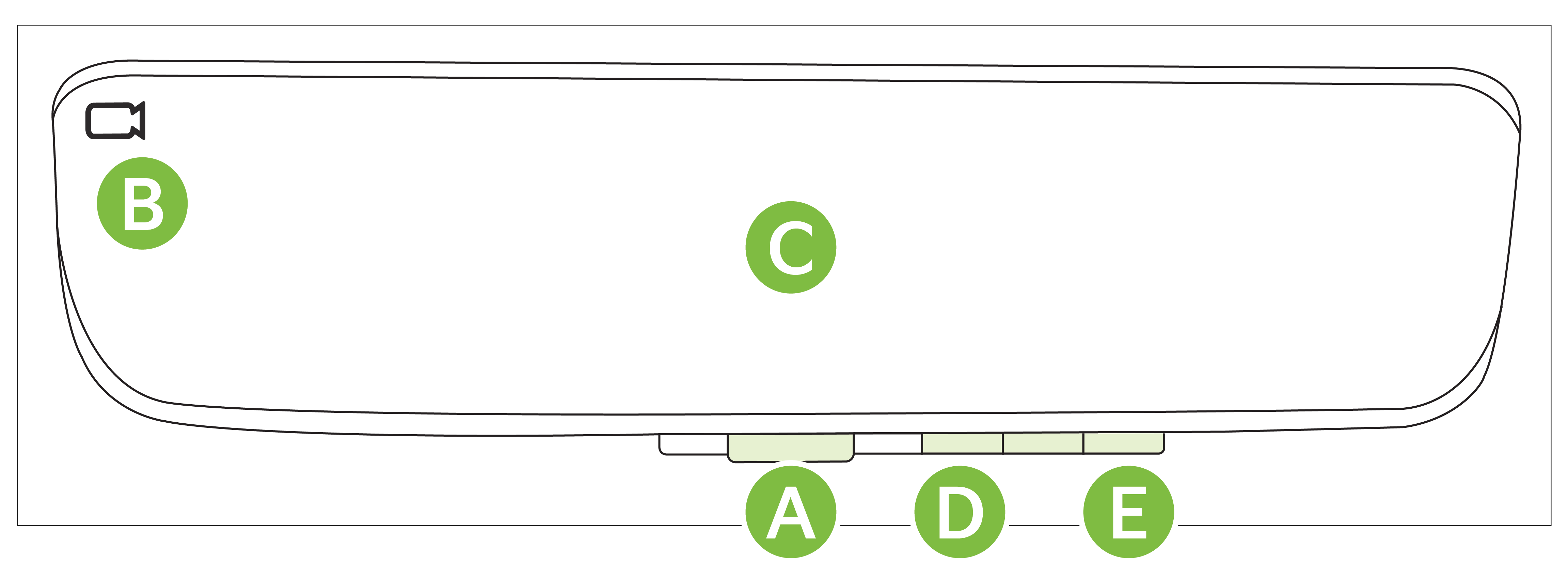

Mode switching lever

Camera indicator showing the camera is operating normally

Display area showing the setting adjustment - brightness and tilt

Menu button - Press to show display area and select item to adjust

Select/adjustment button - Press to select/adjust item displayed

Reminders:

The digital mode is operable when the EV Power button is in the ON/START mode. The display turns off when the EV Power button is switched to other modes.

This feature may not be available on all Kia models. Refer to section 5 in the Owner’s Manual for more information. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
