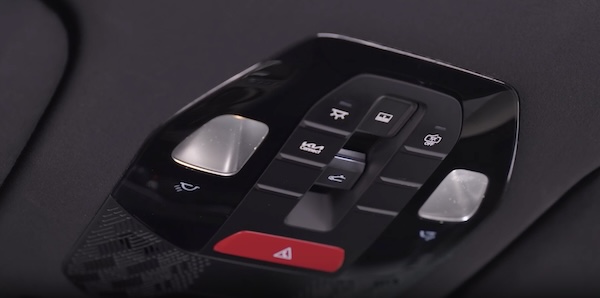

MAP / ROOM LAMPS

Automatic on/off function

Automatic on/off function button :

When not pressed, the automatic function is enabled. When pressed (off), the automatic function is disabled.

The Interior Lights turn on when the door is opened and automatically turns off in approximately 30 seconds.
When using the Smart Key to unlock the doors the lamp turns on for about 30 seconds and then turns off.
When the interior lights are on, they will turn off immediately when the vehicle is started or all doors are locked.
When the door is opened in the “OFF” or “ACC” position, the interior light turns on for a maximum of about 5 minutes and then turn off.
If the vehicle is in ON position, it will stay on continuously.

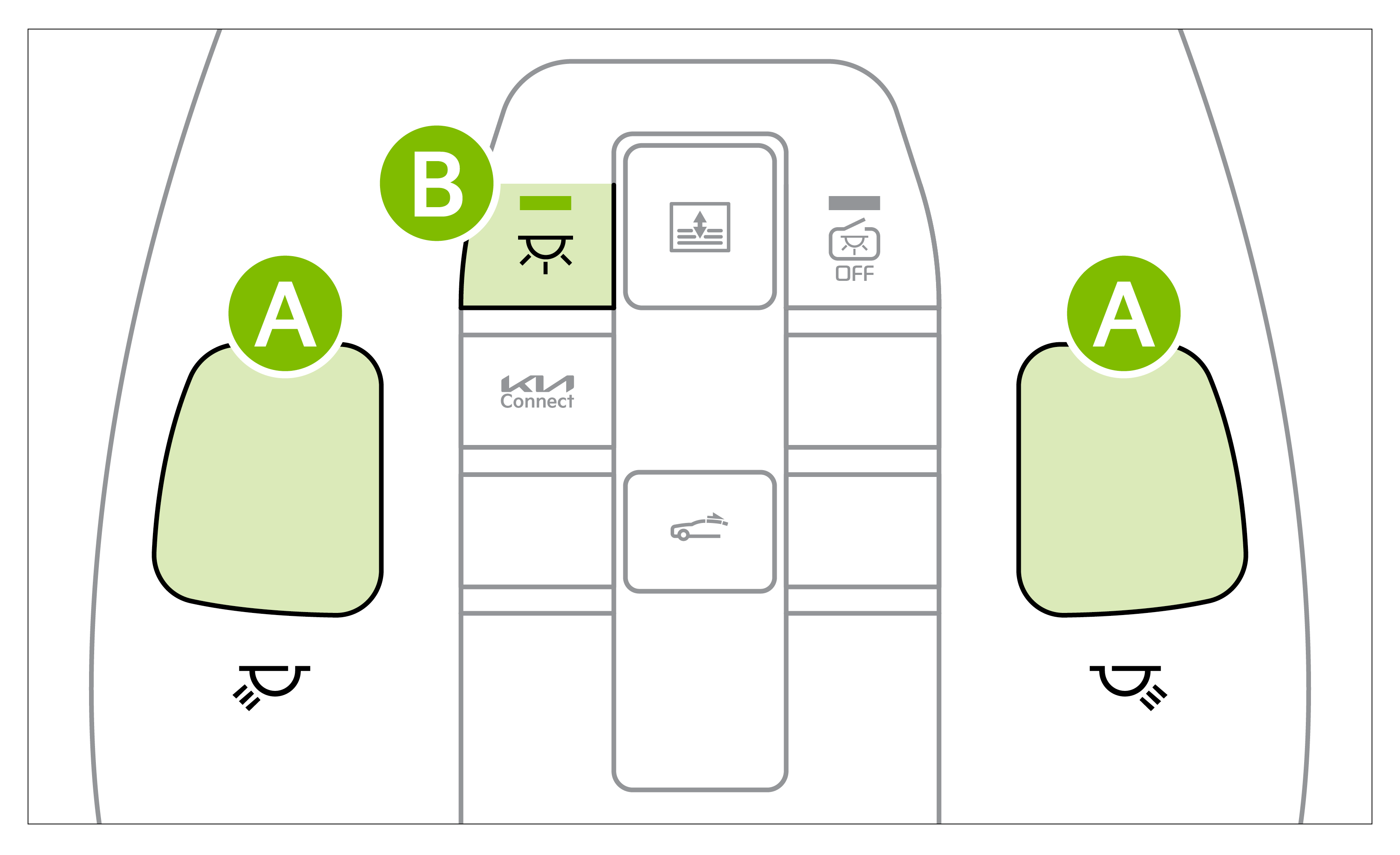

Map / Room Lamp Operation

Press the button to turn on the Driver’s/Passenger’s Map Lamp on/off
The brightness of the map lamps can be changed by pressing and holding either buttons A for about 1.5 seconds or more while the lamp is on. Release the button at the desired brightness to save the setting
Press button to turn all the Map/Room Lamps on/off

Quick Tips:

If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
Using interior lights for an extended period of time may cause 12V battery discharge

Refer to section 5 in the Owner’s Manual for more information. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
