Using Guide
Overhead Console - Sunroof and Room Lamp

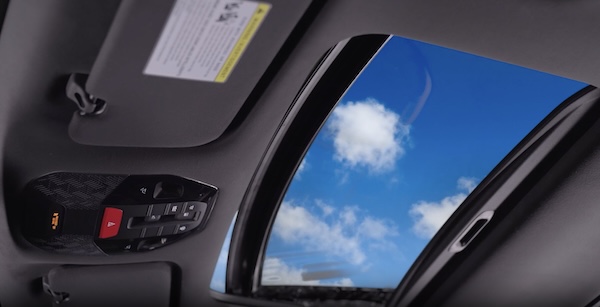

SUNROOF OPERATION

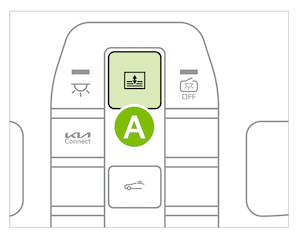

The Sunroof and Sunshade operation is controlled through a multidirectional switch/lever, and the ignition needs to be in the ON position to operate the Sunroof/Sunshade.
Slide the Sunshade and Sunroof
- Auto Open: Slide the lever
backward to the farthest position and release - Auto Close (Sunroof only): Slide the lever forward to the farthest position and release
Slide the Sunroof (with Sunshade open)
- Open: Press the Sunroof lever backward and press again forward/backward until you reach the desired detent position (manual slide feature)
- Close: Press the Sunroof lever forward and press again forward/backward until you reach the desired detent position (manual slide feature)
Tilt the Sunroof
- Raise: Push lever upward
- Lower: Push lever forward
Quick Tips:
- To stop the Sunroof at any position, push or pull the Sunroof control lever in any direction
- Adjusting the sunroof past the first stop position (normal), in the fully opened position, may cause wind buffeting noise
Reminders:
- Sunshade needs to remain open while Sunroof is open and vehicle is moving
- When closing, be mindful of any nearby objects or persons
Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation. Refer to section 4 in the Owner’s Manual for more information.
