KIA CONNECT INFOTAINMENT SYSTEM

(Non-Navigation & Navigation)*

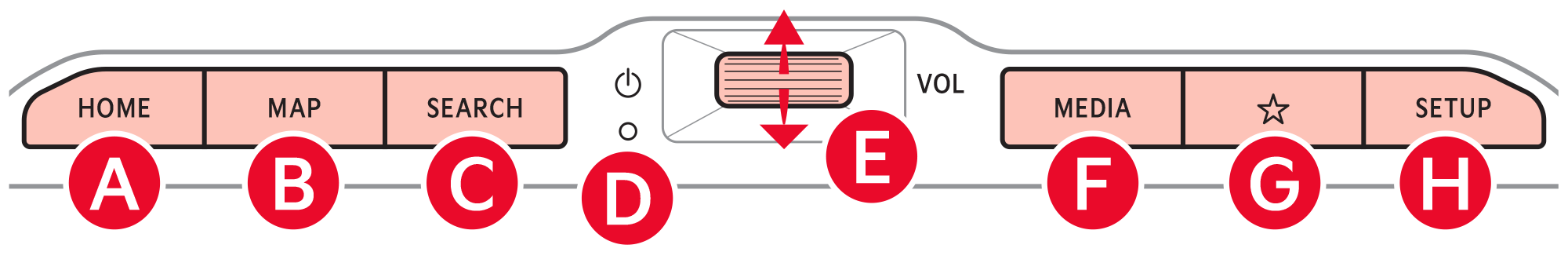

HOME button: Press to go to the Infotainment System Home screen. Press and hold to turn the Quick Control function ON or OFF

MAP button (Systems with navigation) - Pressing the Map button displays the Navigation* System map and your current location

MAP button (Systems without navigation) - When a phone is paired and connected via phone projection, press to display the phone’s native map screen. When a phone is not connected, it will display the phone projection setting screen

SEARCH button: Displays the Search screen

System Reset button: Restarts the system

POWER button: Press to turn the Media ON or OFF. Press and hold to turn OFF the screen and sound

VOLUME lever: Use the lever to adjust the volume

TUNE lever (if activated): While listening to the radio, adjust the frequency or change the station. While playing media, scan music or files. During scanning, select the current station, music or file

MEDIA button (FM/AM, SiriusXM®†17, USB, Bluetooth®†3 Audio): Press to play the connected media. Press and hold to display the Media source options

Custom button : Press to display the user-defined function. Press and hold to display the function settings screen

SETUP button: Displays the Settings screen. Press and hold to display the version information screen

Settings & Presets

Quick Tips:

  • Volume level between different audio modes:
    — When switching between audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
    — When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
  • When connected to Android Auto™ or Apple CarPlay® on your smartphone, the smartphone’s navigation system may also be available
  • This system supports Android Auto™ and Apple CarPlay® (USB connection only)
  • A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent battery discharge
  • At any time, you can interrupt Kia Connect Command Feedback by pressing the VOICE RECOGNITION button on the steering wheel

Reminders:

  • To help reduce driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
  • Prolonged use of the Infotainment System in ACC mode may drain the vehicle’s battery

*See LEGAL page for legal information

Your vehicle’s audio system may differ from that in the illustration. For more information, refer to the Car Infotainment System Quick Reference Guide.

Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachusetts. See Kia Connect Terms of Service at owners.kia.com for more information on its availability.

Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
