SURROUND VIEW MONITOR (SVM)*

SVM is a parking support system that is designed to show the areas around the front, rear, left and right sides of the vehicle via four cameras displayed onto the Infotainment System screen.

**To turn on the Surround View Monitor: ** Move the gearshift to R (Reverse) or press the Parking/View button to turn on Surround View Monitor. Press the button again to turn off the function

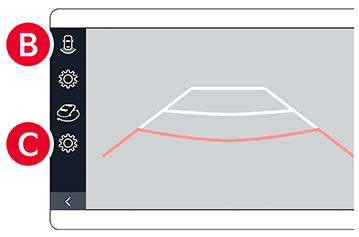

Other view modes can be selected by touching the view icons on the SVM screen
SVM Auto On: With Driver Assistance → Parking Safety → Surround View Monitor Auto On selected from the Vehicle Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive).

To change the SVM settings, press the onscreen settings icon
, while SVM is operating, or pressing Setup, on the Infotainment System, select VEHICLE, DRIVER ASSISTANCE, PARKING SAFETY and CAMERA SETTINGS

Quick Tips:

The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/View button is pressed
To adjust the WARNING VOLUME: Press the SETUP button to go to VEHICLE SETTINGS on the Infotainment System. Press VEHICLE, DRIVER ASSISTANCE, and under WARNING METHODS, you can adjust WARNING VOLUME, and turn HAPTIC WARNING and DRIVING SAFETY PRIORITY on or off
Adjusting the Warning Timing and Warning Methods or Volume will adjust settings for other driver assistance systems

Reminders:

The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance
When Parking Safety Priority setting is enabled in the Warning Methods, and when the SVM is active, the volume will be lowered on all audio modes
Some driver assistance systems use a Haptic Warning, which alerts the driver by gently pulsing the steering wheel when certain conditions are detected

*See LEGAL page for legal information

Images are for illustrative purposes only and may not reflect actual feature or operation.

When engaged, Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay attention and directly check the left/right and rear.

See section 9 in the Owner’s Manual for more information.
