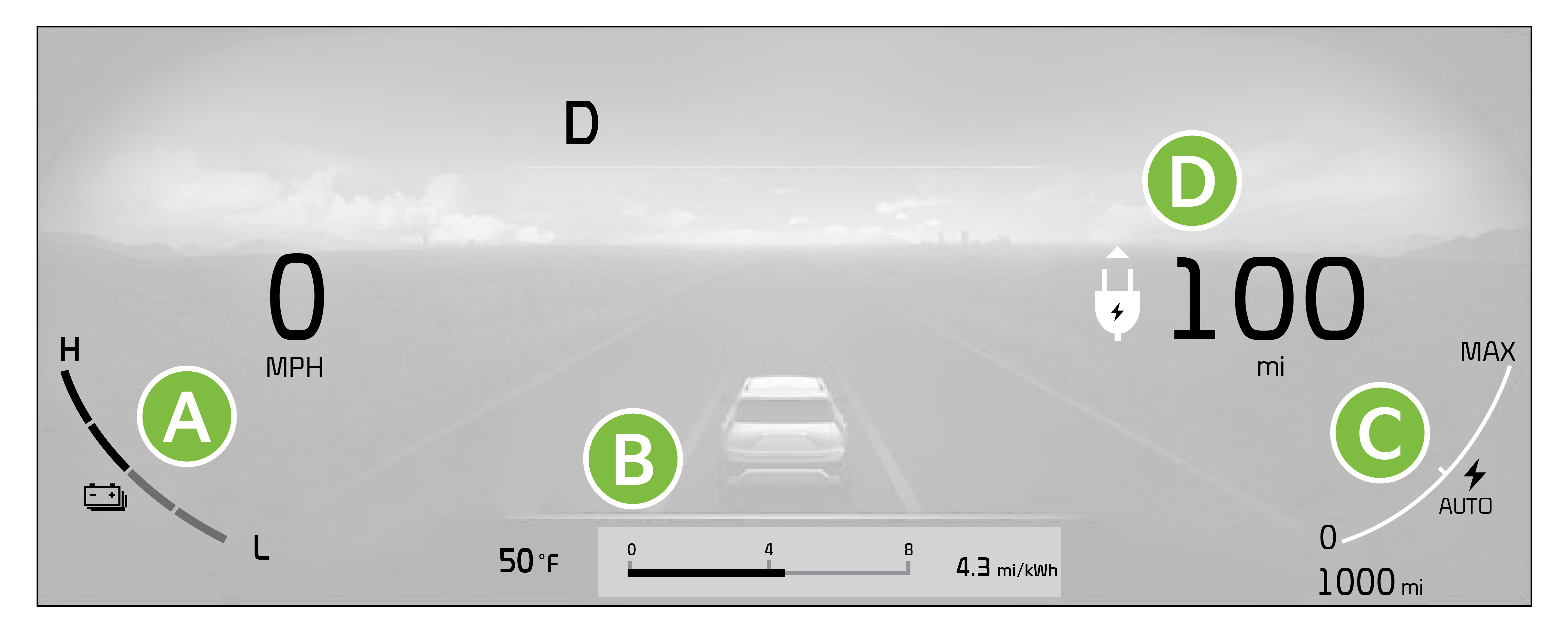

Battery State of Charge (SOC) Gauge: The State of Charge gauge displays the high-voltage battery charge status.

• L (low) position on the gauge indicates that the driving battery energy is low
• H (high) position on the gauge indicates that the driving battery is fully charged

Electric Energy Economy

Regenerative Braking Level

Remaining Distance: Remaining Distance is the estimated distance the vehicle can be driven with the remaining high-voltage battery level. It is displayed differently according to the selected drive mode and Climate Control settings.

Ready Indicator Light – Illuminates when the vehicle is ready to drive.

When the ready indicator light is blinking, the vehicle has detected a possible malfunction. Have an authorized Kia dealer address the concern as soon as possible.

EV Service Warning Light – Illuminates when there is a malfunction related to the electric vehicle control system. Have an authorized Kia dealer address the concern as soon as possible.

Power Down Warning Light – Illuminates when the vehicle’s speed and performance are limited for the safety of the electric vehicle.

Charging Indicator Light – Shows the charging status of the high-voltage battery. When charging, the green indicator turns on. The indicator turns off when not charging.

High Voltage Battery Level Warning Light – Illuminates when the high-voltage battery charge level is insufficient.

Regenerative Brake Warning Lights (when both indicators are lit) – Illuminates when the regenerative brake system is not functioning correctly.
