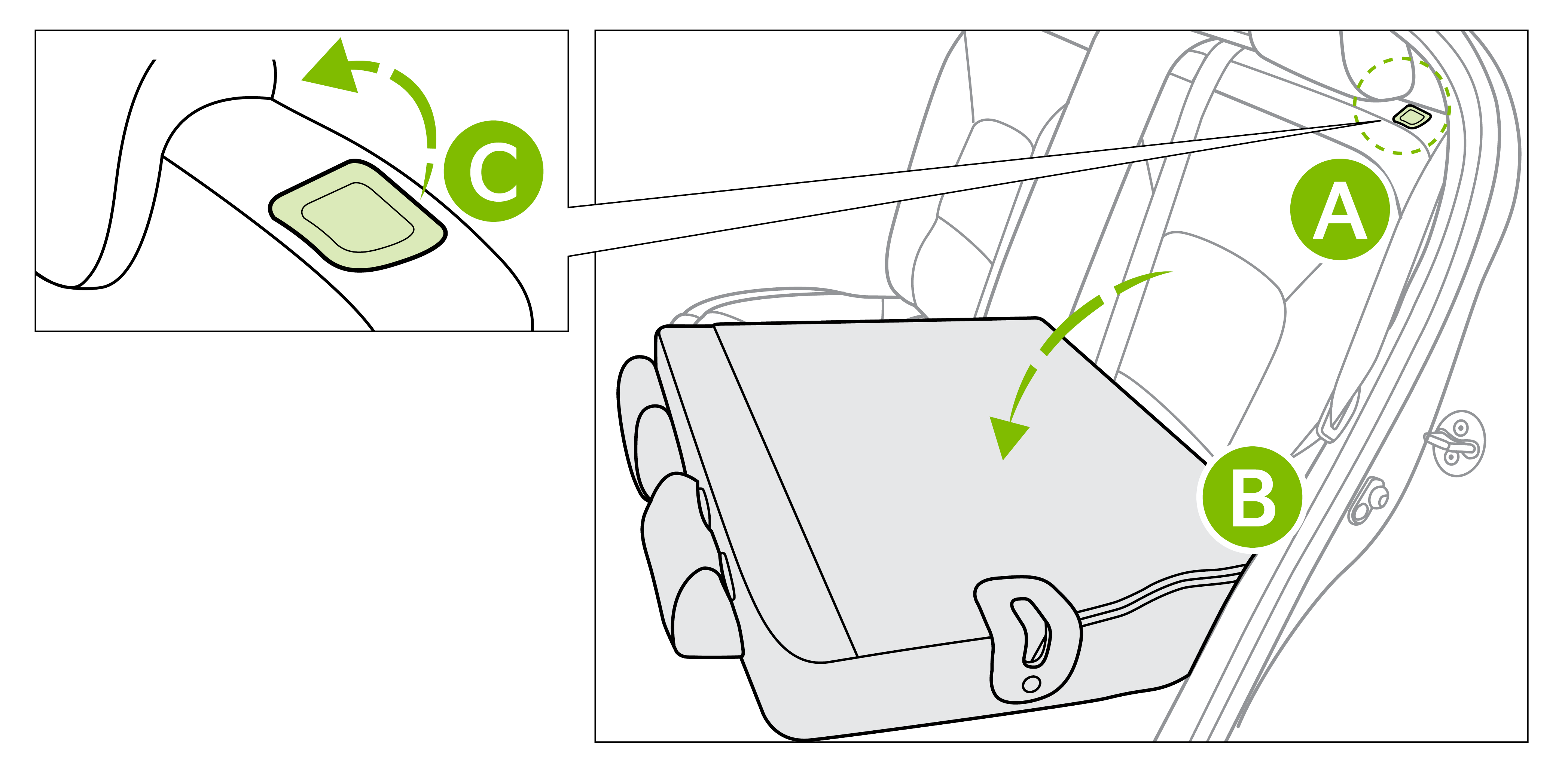

Folding Rear Seats

To Fold:

  1. Ensure the belt strap is out of way of the Seatback folding . Insert the metal seat belt tab into the holder
  2. Adjust the Front Seatback to the upright position and lower the rear headrest to the lowest position
  3. Pull on the Rear Seatback lock release lever , then fold the seat toward the front

To Unfold:

  1. Pull the lock release lever and lift the Seatback backward until it clicks firmly in place
  2. Return the rear seat belt to the proper position

Quick Tips:

  • It may be necessary to adjust the Front Seatbacks to fully lower rear seats
  • Ensure seat is locked by pressing down on Seatback and ensuring red line is NOT visible on bottom of Folder Lever

Reminders:

  • Before unfolding the Seatback, ensure the seat belt is placed into the holder
  • Always make sure the Seatback is locked in place when unfolded

For illustration purposes only. Actual vehicle might be slightly different. Refer to section 4 in the Owner’s Manual for more information.
