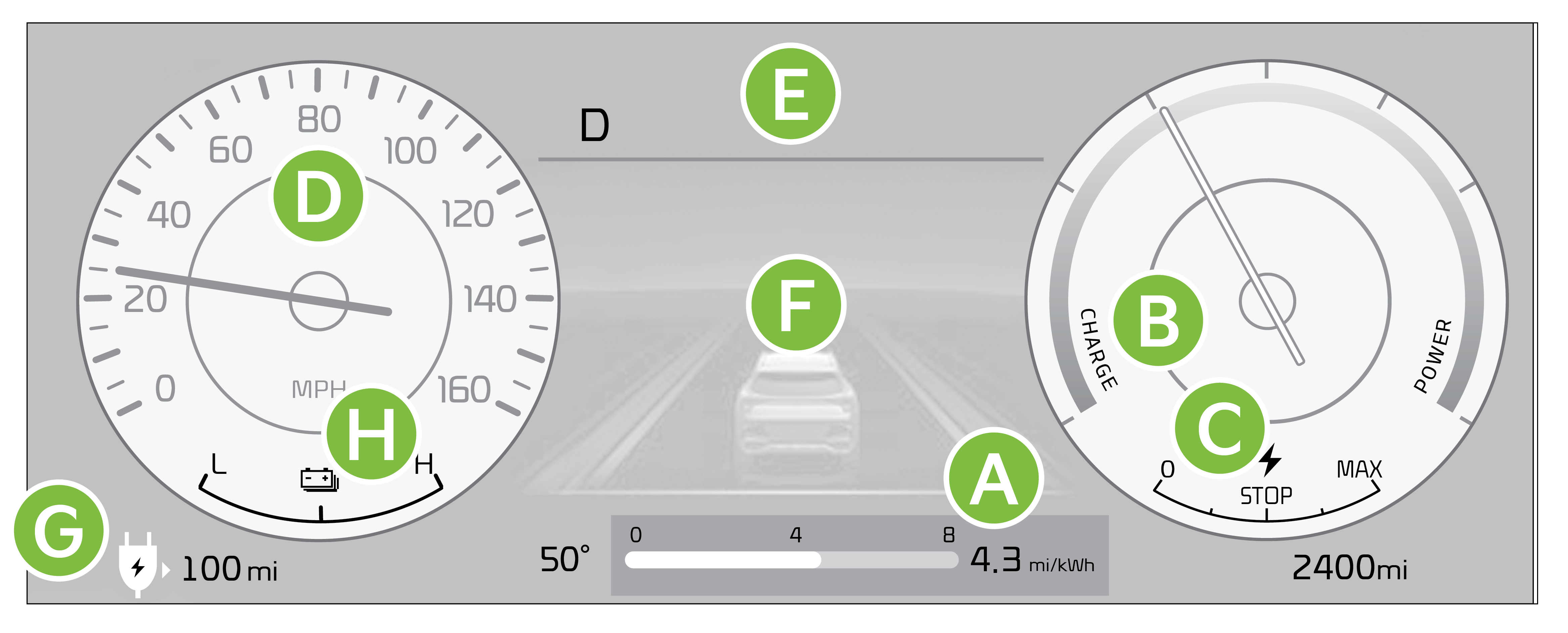

Instrument Cluster Overview

Electric energy economy

Power/Charge gauge - The energy consumption rate of the vehicle and the charge/discharge status of the regenerative brakes

Regenerative Braking Level

Speedometer

Warning and indicator lights

LCD display

Distance to Empty (DTE)

Battery State of Charge (SOC) gauge

Quick Tips:

  • Distance to Empty displayed on the Instrument Cluster after a recharge may vary depending on previous driving patterns, high voltage battery charge amount, weather, temperature, durability of the battery and geographical features
  • Energy consumption is increased in cold or hot weather. When using the heater, more energy will be consumed, which reduces the Distance to Empty

Your vehicle’s Instrument Cluster & indicator light locations may differ from those in the illustrations. For more information on the Instrument Cluster and the function of all indicator and warning lights, please refer to section 5 in the Owner’s Manual. Illustrations are for demonstration purposes only. Some indicators and warning lights may not appear in illustrations. On the vehicle, they may appear in the LCD.
