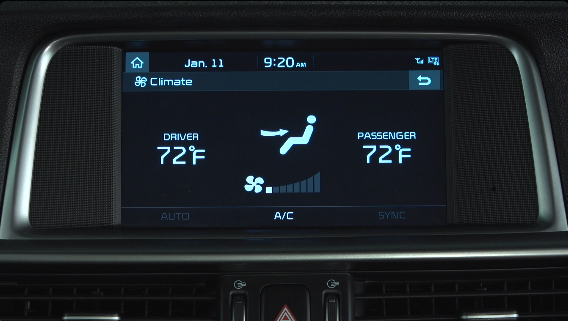

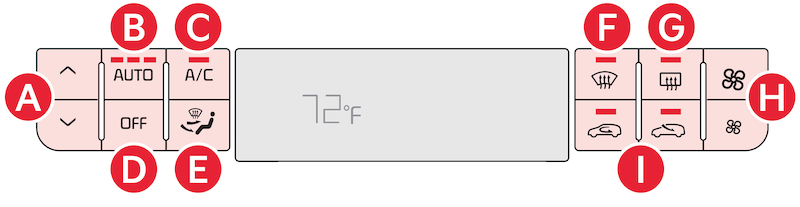

Infotainment System / Climate Control mode switching button Driver’s temperature controls

Automatic Climate Control button

Air conditioning button

OFF button

Mode selection button

Front windshield defroster button

Rear window defroster button

Fan speed control buttons

Air intake control buttons

1. Press AUTO to select Full Auto Operation – The Auto setting automatically controls the airflow modes, fan speeds, air intake and air conditioning according to the temperature setting selected and the ambient condition. The first setting is high fan speed or air flow (Three LEDs lit). Press again for medium fan speed (Two LEDs lit). Press a third time for the lowest fan speed (One LED lit)
2. Set desired Temperature

Defrost Outside Windshield:

1. Set Temperature to Hot
2. Press the Front Defrost button

Defog Inside Windshield:

1. Set Fan Speed to highest position
2. Set Temperature to highest position
3. Press the Front Defrost button

To select Air Flow Modes, press the mode selection button to cycle to the desired mode:

Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield. The system will automatically change to defrost mode when needed.

Auto Defogging is set on by default and will operate when the Climate Control system is on. To cancel Auto Defogging, press the Front Defrost button  for three seconds when the ignition is on (ADS OFF icon will illuminate).

To turn Auto Defogging on again, press the Front Defrost button again for three seconds.
