Kia Connect with Navigation*

FM/AM/ Media (USB, Bluetooth®* Audio)

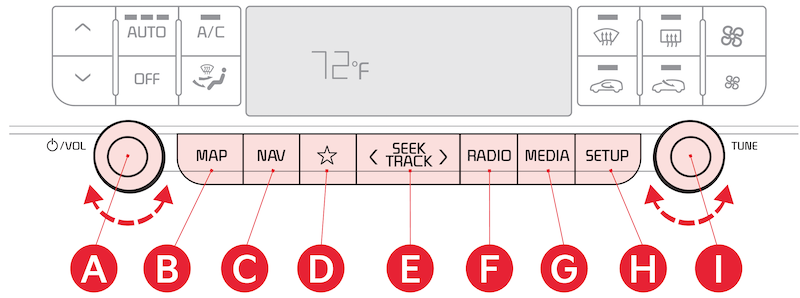

Press to Power ON/OFF. Rotate to adjust Volume

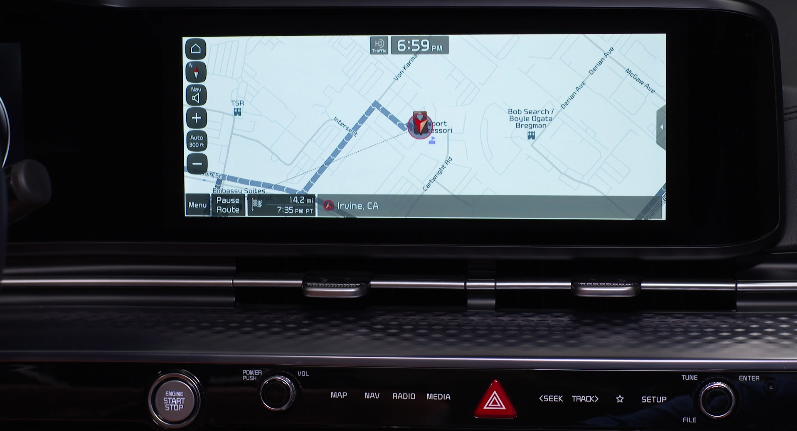

Press to display the MAP screen for the current position mode

Press to select navigation mode

Press to go to Custom (Set) Menu

Press briefly to do the following:

FM/AM mode: Play the previous/next frequency
SiriusXM® mode: Change the channel
MEDIA mode: Change the track, file or title - Press and hold to do the following (over 0.8 seconds):
FM/AM mode: Move quickly through all of the frequencies. When released, the system seeks the next available frequency
MEDIA mode: Rewinds or fast forwards the track or file (except for Bluetooth® Audio)

Press to go to Radio/SiriusXM® modes

Press to go to MEDIA mode

Press to display the Setup/Settings mode

In Radio/SiriusXM®/Media modes, rotate knob to search for stations/ channels/tracks/songs/files. Press the knob to receive the selected channel/track/song/file

Infotainment System / Climate Control mode switching button

To adjust the sound settings P

Press the SETUP key on the Infotainment System or the onscreen SETUP button in ALL MENUS.
Select the onscreen SOUND button, or SOUND SETTINGS.
Select the menu item to change settings, then use the onscreen buttons to adjust settings.

Radio Presets: To save a preset, press and hold the desired slot. This saves the current station in the selected slot.

SiriusXM™ Smart Favorites: In Radio mode, choose SiriusXM™, then select any of the first ten favorites, and during song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast.

Custom Key

To program the Custom Key to one of the available features:

press and hold the SETUP button
press the Custom Key
Select one of the available features you would like the Custom Button to open

Map/software updates - To keep your map and software up to date, Kia provides over-the-air updates, free of charge. You can also visit the official Kia update webpage at https://update.kia.com.

Note, visiting a dealer for software update may include an additional charge.

Quick Tips:

The system can register or pair multiple Bluetooth® devices
Volume level between different audio modes:
— When switching between audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
— When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up

This system supports Android Auto™ and Apple CarPlay® (USB connection only)
A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent battery discharge
At any time, you can interrupt the Voice Command Feedback by pressing the Voice Recognition button on the steering wheel

*See LEGAL page for legal information

Your vehicle’s audio system may differ from that in the illustration. For more information, refer to the Car Infotainment System Quick Reference Guide.

Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachusetts. See Kia Connect Terms of Service at owners.kia.com for more information on its availability.

Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
