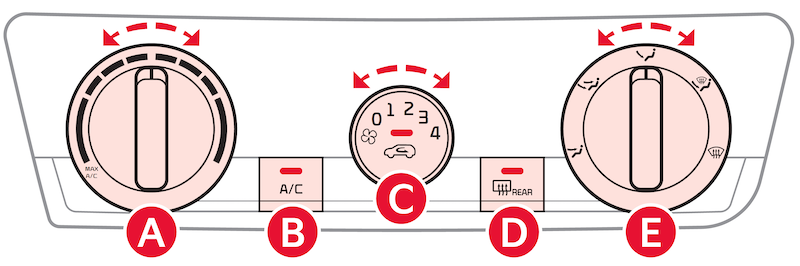

MANUAL CLIMATE CONTROL SYSTEM*

Temperature Control knob

Air Conditioning ON/OFF button

Fan Speed Control knob

Rear Window Defroster button

Air flow mode knob

Defrost Outside and/or Inside Windshield:
  1. Set front fan speed to the highest position
  2. Turn temperature control to Hot
  3. Rotate Mode selection knob to the front defrost position

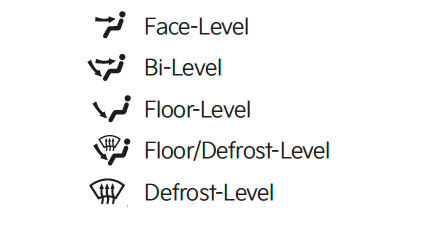

Air Flow Modes

To select Air Flow Modes, rotate the the Mode selection knob to the desired mode.

Quick Tips:

  • Set the mode to the desired position. Defrost mode activates A/C and opens the Fresh Air vent to help dehumidify the air and improve Defroster performance
  • MAX A/C mode automatically engages Recirculated Air
  • Keep inside glass as clean as possible to reduce window fogging

Reminders:

  • Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit).
  • Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility

This feature may not be available on all Kia models.

Your Manual Climate Control system may differ from those in the illustrations. See section 4 in the Owner’s Manual for more details.
