SUNROOF OPERATION

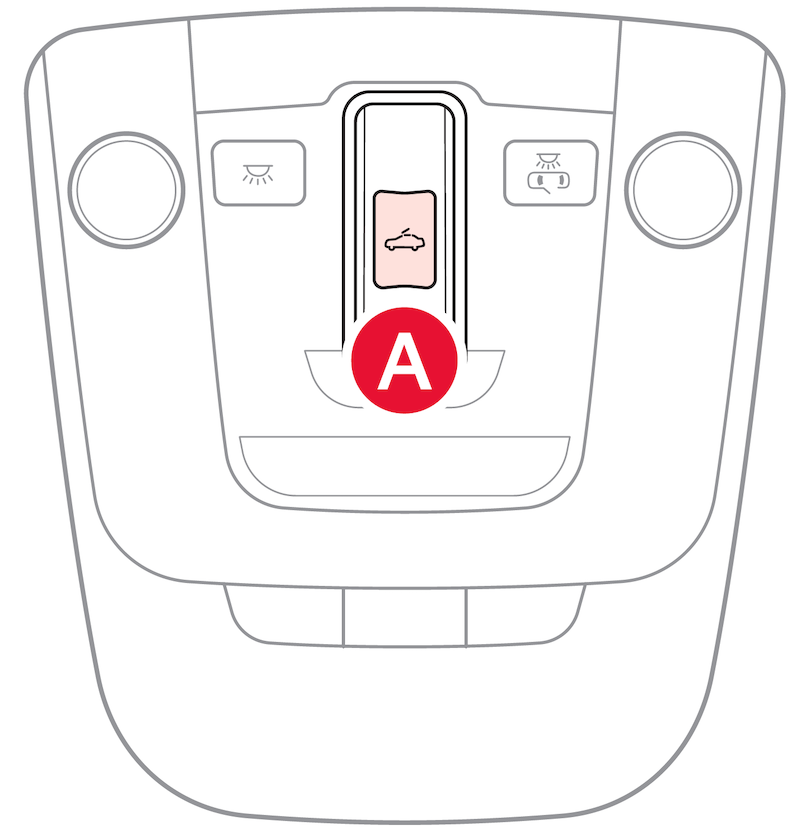

The sunroof operation is controlled through a multidirectional switch. The ignition or ENGINE START/STOP button needs to be in the ON position to operate the sunroof.

To slide the sunroof glass and sunshade:

Auto Open: Slide the switch rearward to the farthest position (second detent)
Auto Close (sunroof glass only): Press the switch forward to the farthest position (second detent)

To slide the sunshade only:

Manually slide the sunshade open and closed by hand.

To tilt the sunroof glass:

Tilt open: Press switch upward
Tilt closed: Press switch forward

Quick Tips:

To stop the sunroof/sunshade at any position, push or pull the sunroof control switch in any direction.
While driving with the rear windows down or with the sunroof in an open or partially open position, a wind buffeting or pulsation noise may be heard. This noise is a normal occurrence and can be reduced or eliminated by partially lowering both front windows or partially closing the sunroof

Reminders:

If the sunroof is open when ignition is turned off (Smart Key), ignition key removed or the driver’s door opened, a warning will sound and display on the Instrument Cluster
The sunshade cannot be closed while sunroof is open
Do not adjust the sunroof glass or sunshade while driving. This could result in loss of control of the vehicle

Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation. Refer to section 4 in the Owner’s Manual for more information.
