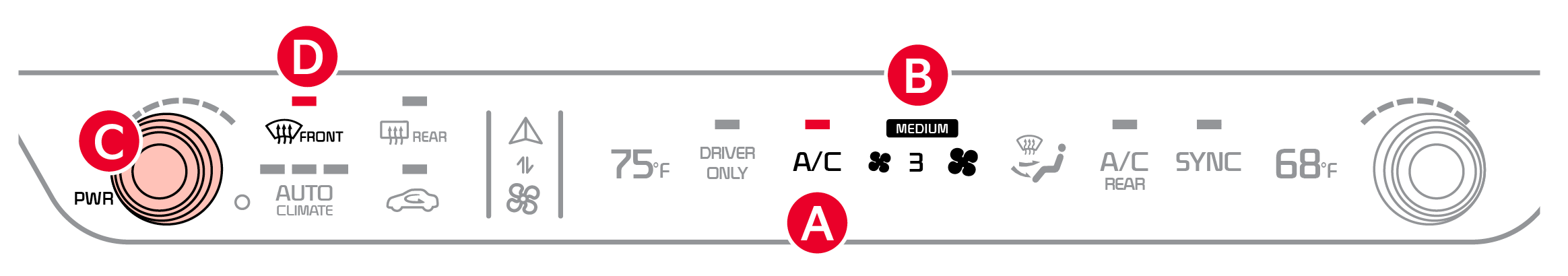

AUTOMATIC CLIMATE CONTROL

Driver’s temperature control knob

Front windshield defroster button

Rear window defroster button

Auto Climate indicator

Circulation control button

Infotainment/Climate Switchable Control

Driver’s temperature setting

Driver’s A/C button

A/C ON/OFF button

Fan speed control buttons

Mode selection button

Rear A/C control button

A/C SYNC button

Passenger temperature setting

Passenger temperature control knob

Air Flow Modes

To select Air Flow Modes, press the Mode button to choose the desired mode:

Reminders:

A/C button indicator will not illuminate if the desired adjusted temperature is greater than that of the ambient temperature.
Recirculation modeswill automatically switch to recirculation mode when Max A/C is turned on

Climate Control Auto Function

Press A/C to select Full Auto Operation. Press once for the air flow high setting, twice for medium setting and once more for the lower setting.
The Auto setting automatically controls the airflow modes, fan speeds, air intake and air conditioning according to the temperature setting selected.
Press to set desired fan speed
Rotate the knob to set desired temperature

Defrost/Defog Outside and/or Inside Windshield:

Set Front Fan Speed to the highest position
Set Temperature to Hot
Press the Front Defrost button

Quick Tips:

Defrost mode activates A/C and opens Fresh Air Vent to help dehumidify the air and improve defog performance
During Auto Operation, the A/C indicator will not illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity
Keep inside glass as clean as possible to reduce window fogging

Auto Defogging System (ADS)

Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield. The system will automatically change to defrost mode in certain conditions.

Auto Defogging is set ON by default and will operate when the Climate Control system is ON. To cancel Auto Defogging, press and hold the Front Defrost button for three seconds when the ignition is on (ADS OFF icon will illuminate).

To turn Auto Defogging on again, press and hold the Front Defrost button again for three seconds.

Reminders:

Pressing any button during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)
Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility and/or cause smell/odor

Certain features are available only on select Kia models.

Refer to section 5 in the Owner’s Manual for more information.

Your Automatic Climate Control system may differ from those in the illustrations. Images are for illustrative purposes only and may not reflect actual feature or operation.
