FORWARD/REVERSE/SIDE PARKING DISTANCE WARNING (PDW)*

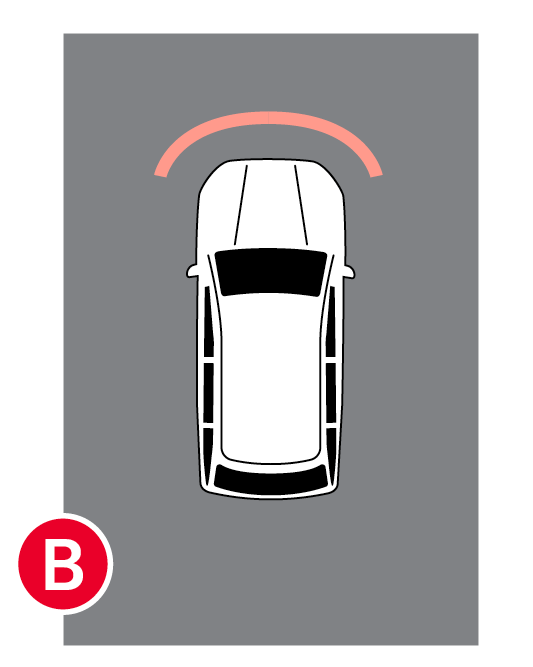

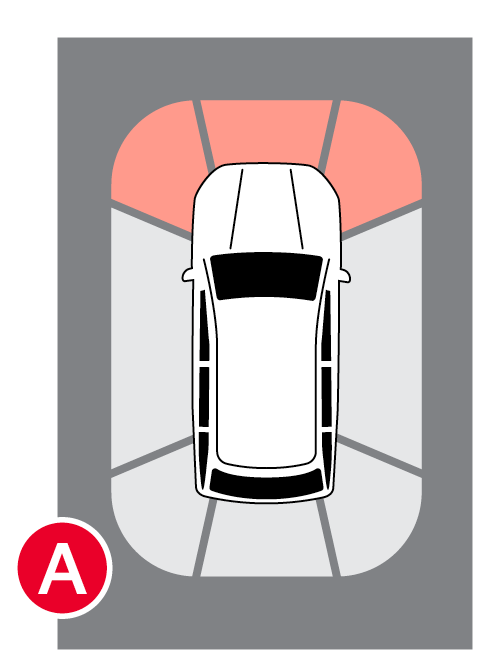

Forward/Reverse/Side Parking Distance Warning is a supplemental system designed to assist the driver by sounding a warning if an object is detected within the sensing area to the front, rear, and side of the vehicle when stopped or driving at a low speed. When an object is detected, warning indicators may illuminate on the Instrument Cluster and the Infotainment System .

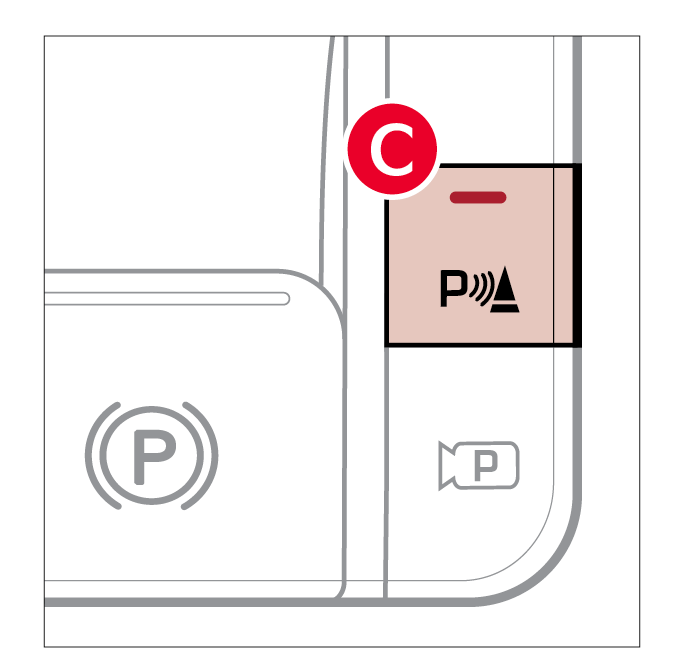

To turn PDW on, press the Parking Safety button (LED illuminated). To turn PDW off, press again (LED not illuminated).

PDW will activate when the ignition is on/ready and the vehicle is in D (Drive) or R (Reverse).

PDW Settings:

To enable in Vehicle Settings in the Infotainment System:

Press the SETUP key or the onscreen SETUP button.
Press VEHICLE to enter Vehicle Settings.
Select DRIVER ASSISTANCE,
Select PARKING SAFETY
Select PARKING DISTANCE WARNING AUTO ON.

Quick Tips:

To adjust the WARNING VOLUME: Press the SETUP button to go to VEHICLE SETTINGS on the Infotainment System. Press VEHICLE, DRIVER ASSISTANCE, and under WARNING METHODS, you can adjust WARNING VOLUME, and turn HAPTIC WARNING and DRIVER SAFETY PRIORITY on or off
Adjusting the Warning Timing and Warning Methods or Volume will adjust settings for other driver assistance systems.

Reminders:

If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
When more than two objects are sensed at the same time, the closest one will be recognized first

*See LEGAL page for legal information

This feature may not be available on all Kia models.

Forward/Reverse/Side Parking Distance Warning (PDW) is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. Forward/Reverse/Side Parking Distance Warning (PDW) may not detect every object around the vehicle.

Refer to section 7 in the Owner’s Manual for more information.

Images are for illustrative purposes only and may not reflect actual feature or operation.
