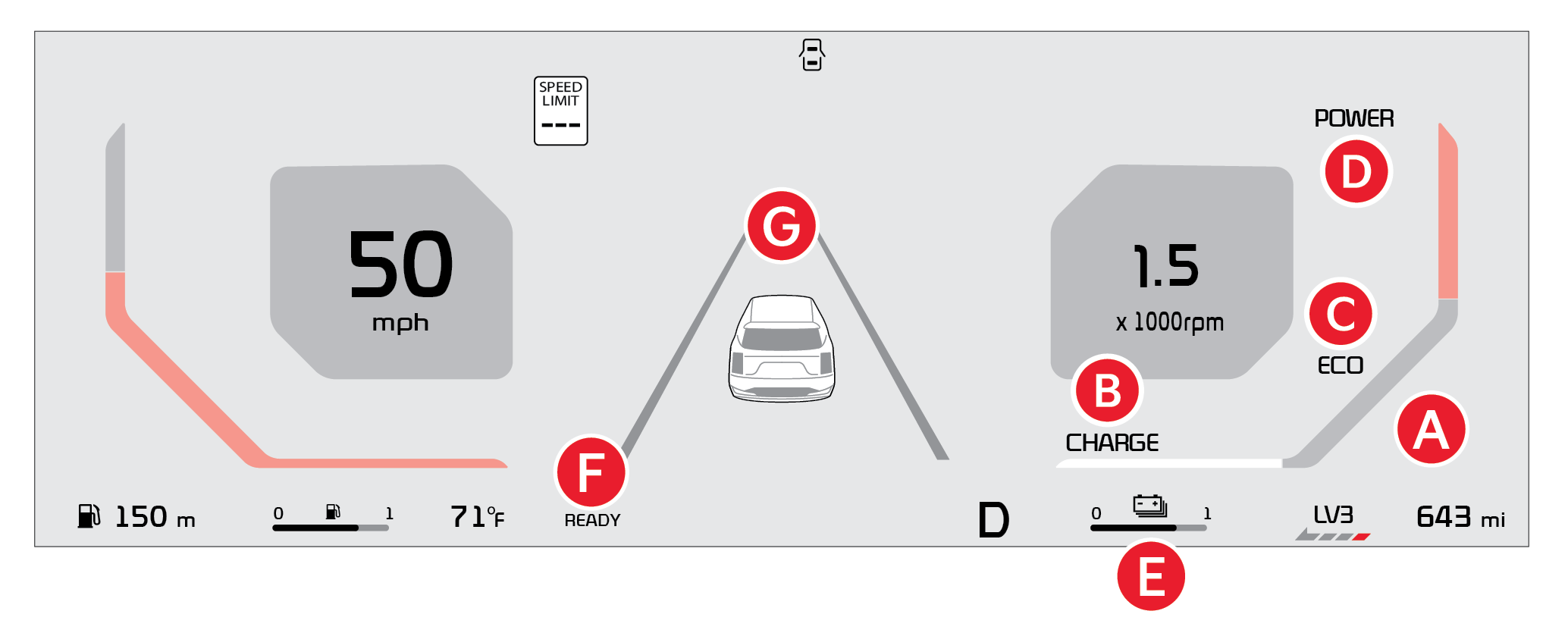

Instrument Cluster Overview
Power Gauge - Indicates how economically the vehicle is being driven
– Indicates that the energy made by the vehicle is being converted to electrical energy (regenerative energy)
– Indicates that the vehicle is driven in an ECO friendly manner
– Indicates that the vehicle is exceeding the ECO friendly range
EV Mode - Illuminates when only the electric motor is powering the vehicle
Ready - Illuminates when the Hybrid system is operational. Even if the engine is off, the vehicle can be driven (Plug-In Hybrid indicator location may vary from image shown)
Service Indicator - Illuminates when a malfunction occurs in the vehicle’s Hybrid system. Have an authorized Kia dealer address the concern as soon as possible
Avoid starting or driving the vehicle when the fuel tank is empty. As the engine will be incapable of charging the high-voltage Hybrid battery, the battery will lose its charge and may be damaged.
Your vehicle’s Instrument Cluster & indicator light locations may differ from those in the illustrations. For more information on the Instrument Cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
