ELECTRONIC PARKING BRAKE (EPB)

The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake.

Applying the Parking Brake

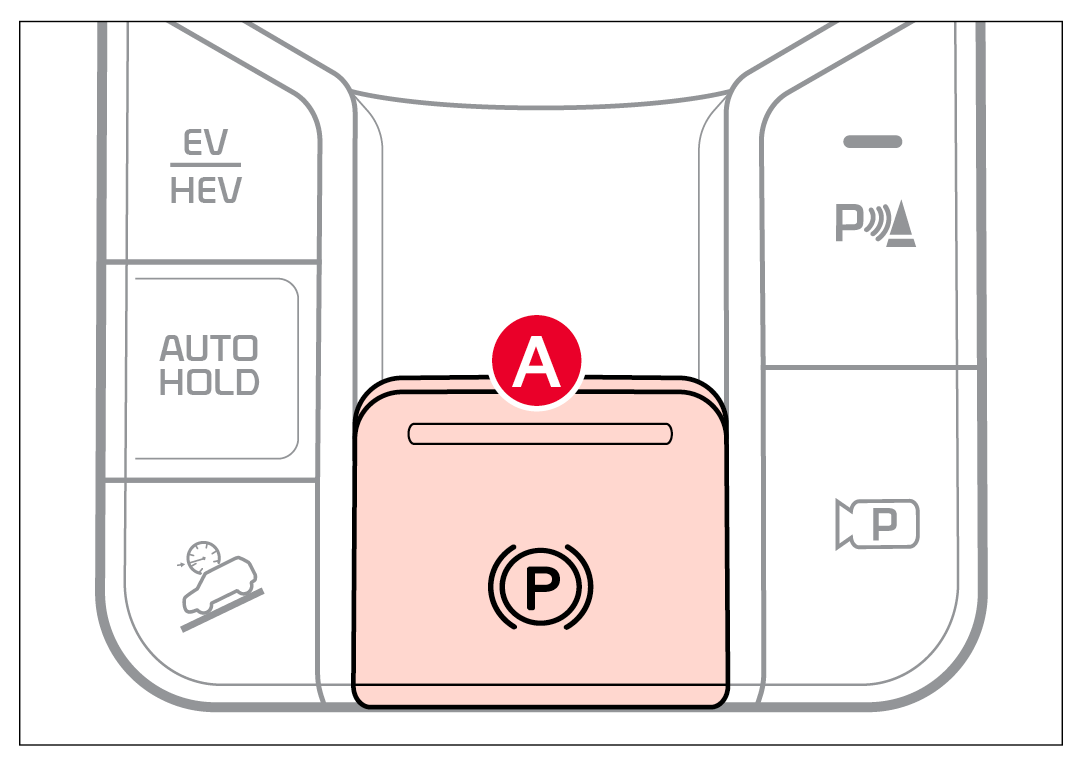

Depress the brake pedal and pull up the EPB switch . Ensure that the indicator light is illuminated on the Instrument Cluster.

Releasing the Parking Brake

The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse) or shifted out of N (Neutral) to Reverse or D (Drive).

To release EPB manually:

Quick Tips:

  • When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB
  • With the EPB system activated, pull up and hold the EPB switch again to increase brake pressure if parked on a decline or incline
  • If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application

Reminders:

  • As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned on
  • If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
  • The EPB should not be operated while the vehicle is moving
  • A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly

Refer to section 6 in the Owner’s Manual for more information. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
