Kia Connect with Navigation

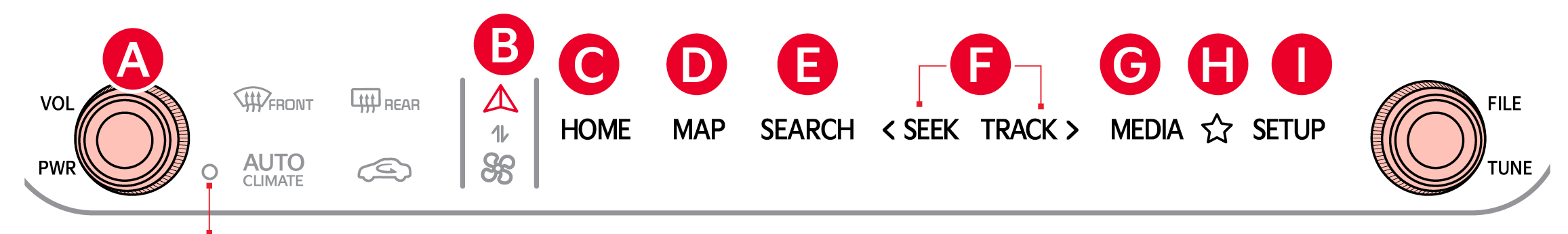

POWER button/VOLUME knob: Press to turn the Media ON/OFF. Press and hold to turn off the screen and sound. Rotate to adjust the system volume (except for navigation sound)
Infotainment/Climate switch button: Switch between control panel functions. Press/hold to access the control panel default settings screen
HOME: Press to go to the Home screen. Press and hold to turn the Quick Control function ON/OFF
**MAP button: (**Systems with navigation): Pressing the Map button displays the Navigation System map and your current location
MAP button (Systems without navigation): When a phone is paired and connected via phone projection, press to display the phone’s native map screen. When a phone is not connected, it will display the phone projection setting screen
SEARCH button: Displays the Search screen
SEEK/TRACK buttons: While listening to the radio, press to change the station. While playing media, press to change the track/file
MEDIA button (FM/AM, SiriusXM®, USB, Bluetooth® Audio: press to play the connected media. Press and hold to display the Media Home screen
Custom button: Press to play the user-defined function. Press and hold to display the function settings screen
SETUP button: Displays the Settings screen. Press and hold to display the version information screen
TUNE knob: While listening to the radio, press to adjust the frequency or change the station. While playing media, press to scan music or files. During scanning, press to select the current channel, music or file. While on the map screen, zoom in or out on the map (except for navigation sound)
To adjust the sound settings from any audio mode, press the SETUP button on the infotainment system, then select the onscreen SOUND button. Select the menu item to change settings, and use the onscreen buttons to adjust settings.
Radio Presets: To save a preset, press the STAR button next to or below the Radio Station display. This saves the current station as a preset.
SiriusXM® Smart Favorites: In Radio mode, choose SiriusXM®, then select any of the first ten favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast.
Custom Key: To program the Custom Key, press and hold to select an available feature you would like the Custom Key to open.
– When switching between audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
*See LEGAL page for legal information
Some features may not be available on all Kia models.
For further Kia Connect with Smart Navigation operations, refer to the Car Infotainment System Quick Reference Guide. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. Images are for illustrative purposes only and may not reflect actual feature or operation.
