PANORAMIC SUNROOF WITH POWER SUNSHADE

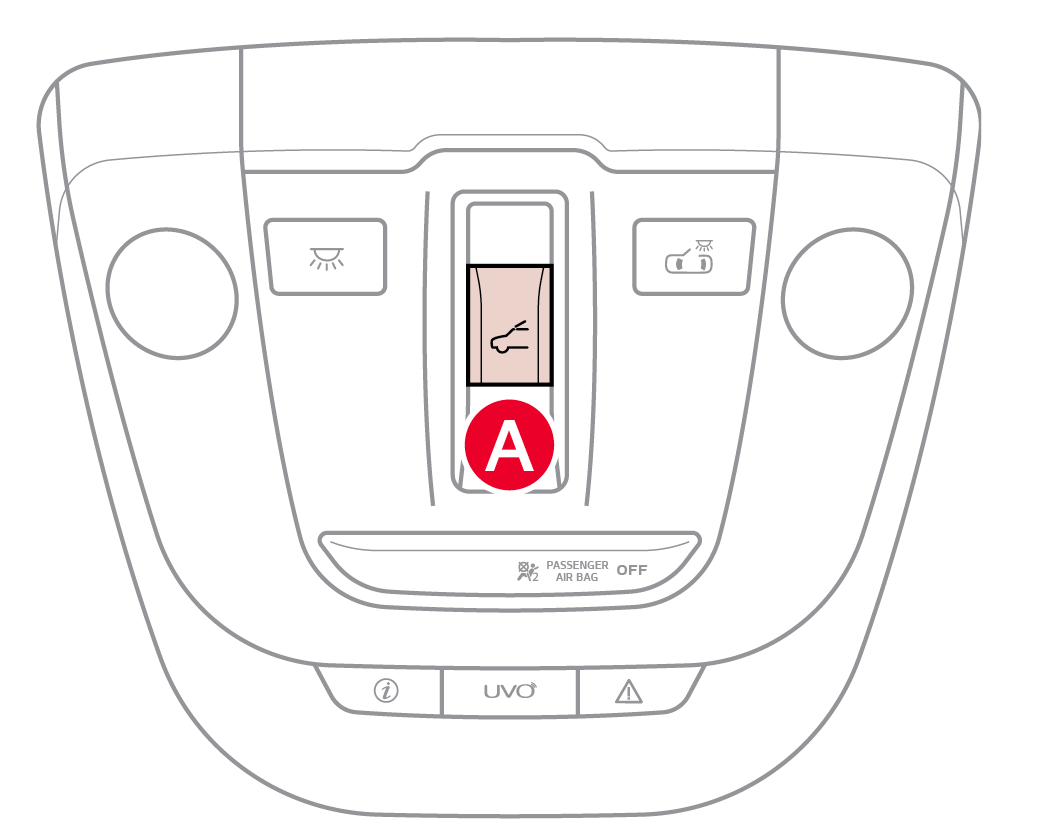

The Sunroof and Sunshade operation is controlled through a multidirectional switch . The ignition needs to be ON to operate the sunroof / power sunshade.

To slide the power sunshade and sunroof

Auto Open – Push the switch backward to the second detent position and release
Auto Close – Push the switch forward to the second detent position and release

To slide the power sunshade only

Auto Open – Push the switch backward to the first detent position and release.
Auto Close – Push the switch forward to the first detent position and release.

Slide the sunroof (with sunshade open)

Auto Open – Push the switch backward to the first detent position and release.
Auto Close – Push the switch forward to the first detent position and release to close sunroof glass only. Push the switch forward to the second detent position and release to close sunroof glass and power sunshade.

To tilt the sunroof

Raise: Push and release switch upward
Lower: Push and release switch upward
Auto-close sunroof and power sunshade: Push the switch forward to the second detent position

Quick Tips:

To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control switch in any direction.

Reminders:

The sunroof can be operated for approximately 30 seconds after the ignition is turned off. If the front doors are opened, the sunroof cannot be operated even within the 30-second period.
The Sunshade needs to remain OPEN while sunroof is open
Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle
When closing, be mindful of any objects or persons
If the ignition/vehicle is turned off, and the driver’s door is opened, with the sunroof not fully closed, the Instrument Cluster LCD will display a warning message and a chime will sound for a few seconds

Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation. Refer to section 5 in the Owner’s Manual for more information.
