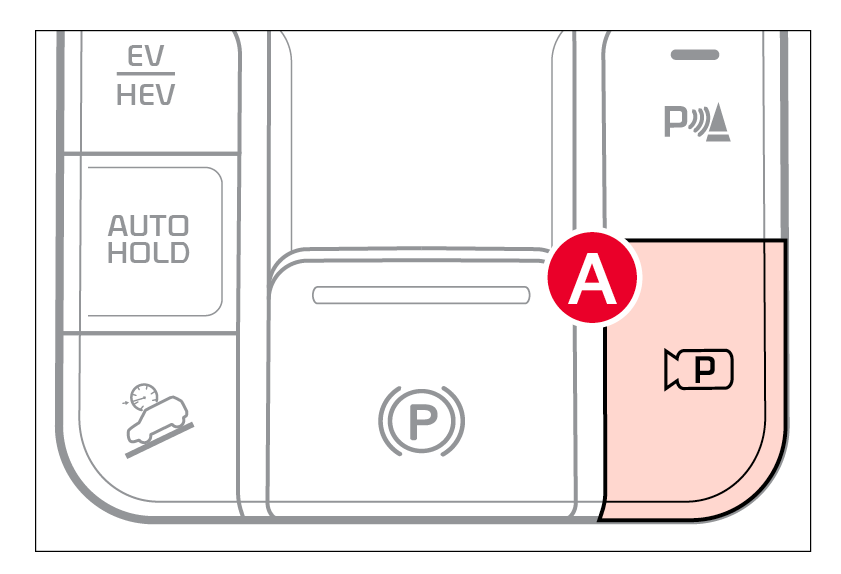

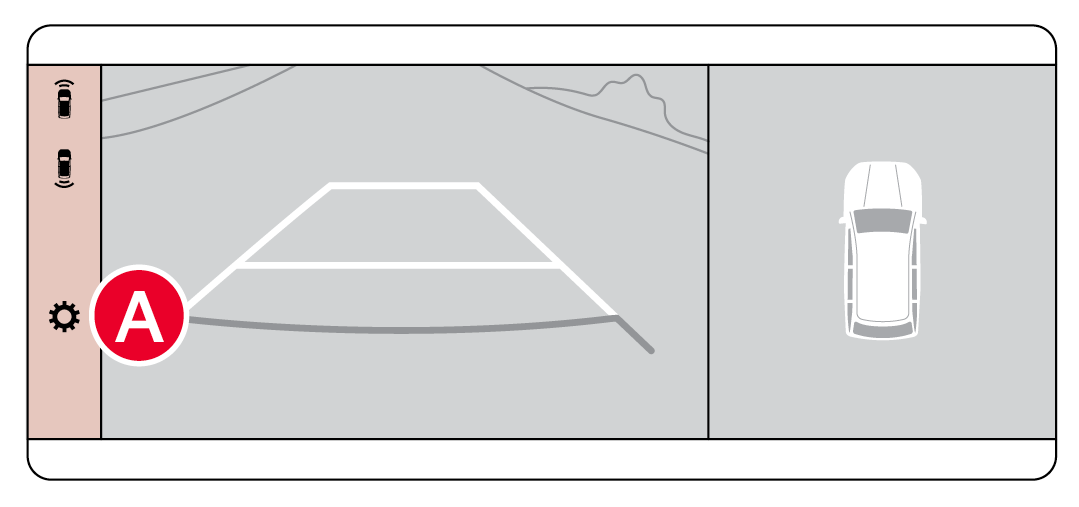

Surround View Monitor is a parking support system that shows the areas around the front, rear, left and right sides of the vehicle via four wide-view cameras displayed onto the Infotainment System screen. Press to turn SVM ON/OFF.

SVM will operate when:

The Parking/View button is pressed with the gear in D (Drive) or N (Neutral) when vehicle speed is below 9 mph (15 km/h)
Parking/View button is pressed with the gear in P (Park)
The gear shift is in R (Reverse). When the gear is in R (Reverse), Surround View Monitor will turn ON regardless of vehicle speed or button status
The gear shift is changed from R (Reverse) to N (Neutral) or D (Drive) when vehicle speed is below 9 mph (15 km/h)

Off Conditions:

Parking/View button is depressed
When vehicle speed is above 9 mph (15 km/h), SVM will turn OFF and the screen will change back to the previous Infotainment System screen
One of the Infotainment System buttons is pressed without the gear in R (Reverse). The screen will change back to the previous Infotainment System screen

Reminders:

The wide-view camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance. The Surround View Monitor system is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay attention and directly check the left/right and rear
While the SVM is active the volume will be lowered on all audio modes if you select Driver Assistance then Warning Method and Parking Safety Priority in the Vehicle Settings in the Infotainment System
Through normal use and after washing or inclement weather, the rear camera may need cleaning. Use a clean, microfiber cloth to remove any dirt, debris or spots that may have accumulated on the lens

Quick Tips:

Reminders:
