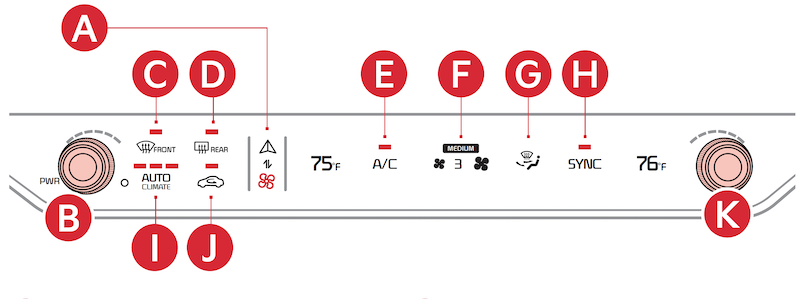

Infotainment System / Climate Control mode switching button - Press to toggle between Infotainment System and Climate Control Modes. Press and hold to set the default mode.

Driver’s temperature control knob

Front windshield defroster button

Rear window defroster button

Air conditioning button

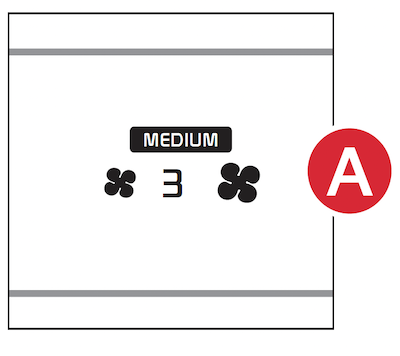

Fan speed control buttons

Mode selection button

SYNC button

Automatic Climate Control button

Air intake control button

Passenger’s temperature control knob

1. Press AUTO to select Full Auto Operation - The Auto setting automatically controls the airflow modes, fan speeds, air intake and air conditioning according to the temperature setting selected and the ambient condition
2. Set desired Temperature
3. Press SYNC to sync the left and right temperature control

Defrost Outside Windshield:

1. Set Fan Speed to highest position
2. Set Temperature to highest temperature
3. Press the Front Defrost button

———————————————

Defog Inside Windshield:

1. Set Fan Speed to highest position or to desired temperature
2. Set Temperature to highest position or to desired temperature
3. Press the Front Defrost button

To select Air Flow Modes, press the mode selection button to cycle to the desired mode:

Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield. The system will automatically change to defrost mode when needed.

Auto Defogging is set on by default and will operate when the Climate Control system is on. To cancel Auto Defogging, press the Front Defrost button  for three seconds when the ignition is on (ADS OFF icon will illuminate).

To turn Auto Defogging on again, press the Front Defrost button again for three seconds.
