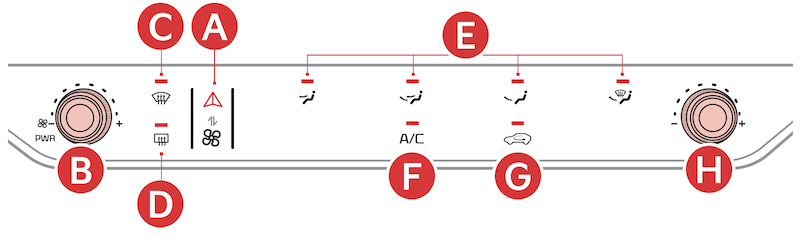

MANUAL CLIMATE CONTROL SYSTEM*

Infotainment System / Climate Control mode switching button

Climate ON/OFF, fan speed control

Front windshield defroster button

Rear window defroster button

Mode selection buttons

A/C On/Off button

Air intake control button

Temperature Control

Defrost Outside Windshield:
  1. Set Fan Speed to the highest position
  2. Set Temperature to highest temperature
  3. Press the Front Defrost button
Defog Inside Windshield:
  1. Set Fan Speed to desired position
  2. Set Temperature to desired position
  3. Press the Front Defrost button
Air Flow Modes

To select Air Flow Modes, rotate the the Mode selection knob to the desired mode.

Quick Tips:

  • Set the mode to the desired position. The Defrost mode activates A/C and opens Fresh Air vent to help dehumidify the air and improve Defroster performance
  • MAX A/C mode automatically engages Recirculated Air
  • Keep inside glass as clean as possible to reduce window fogging

This feature may not be available on all Kia models.

Your Manual Climate Control system may differ from those in the illustrations. See section 4 in the Owner’s Manual for more details.
