SURROUND VIEW MONITOR (SVM)*

Surround View Monitor uses the wide view cameras and displays images around the vehicle through the infotainment system screen to assist with parking.

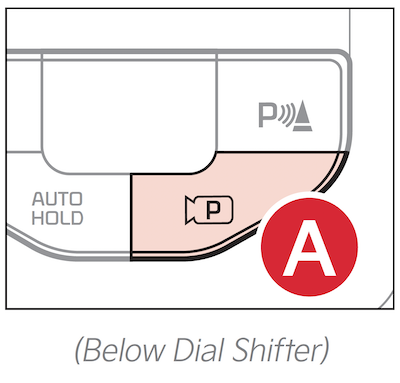

To turn on the Surround View Monitor press the Parking/View button . Press the button again to turn off the function

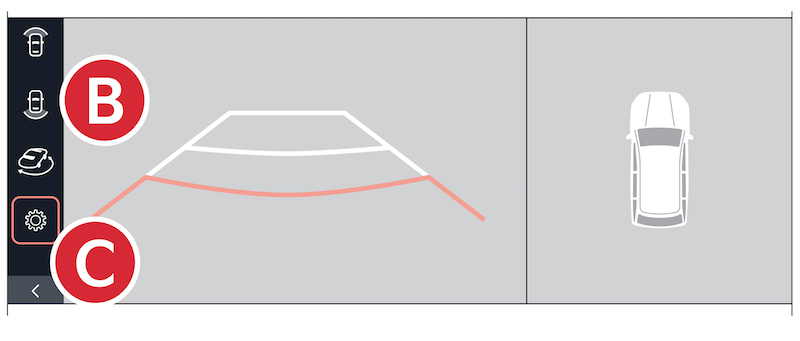

Other view modes can be selected by touching the view icons on the Surround View Monitor screen

Surround View Monitor Auto On:
From the Vehicle Settings menu, select Driver Assistance, Parking Safety, Surround View Monitor Auto On, and the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in Drive
To change the SVM settings, press the onscreen settings icon , while SVM is operating.

Quick Tips:

The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/View button is pressed.

Reminders:

The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance
While the SVM is active, and Parking Safety Priority is selected in the User Settings / Vehicle Settings, the volume will be lowered on all audio modes

*See LEGAL page for legal information

Images are for illustrative purposes only and may not reflect actual feature or operation.

When engaged, Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay attention and directly check the left/right and rear.

See section 6 in the Owner’s Manual for more information.
