ENERGY FLOW - INSTRUMENT CLUSTER

Plug-In Hybrid’s Instrument Cluster screen displays the following Plug-In Hybrid system modes to inform the driver of its status. To change modes, go to User Settings in the Instrument Cluster.

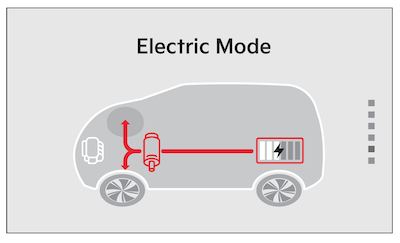

EV Propulsion - The electric motor is moving the vehicle.

Engine-Only Propulsion - The engine is moving the vehicle.

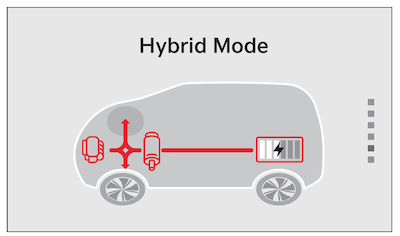

Power Assist - Both the electric motor AND the engine are moving the vehicle.

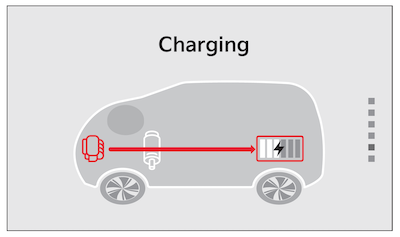

Engine Generation - While the vehicle is stopped, the engine is charging the Plug-In battery.

Hybrid’s Instrument Cluster screen displays the following Plug-In Hybrid system modes to inform the driver of its status. To change modes, go to User Settings* in the Instrument Cluster.

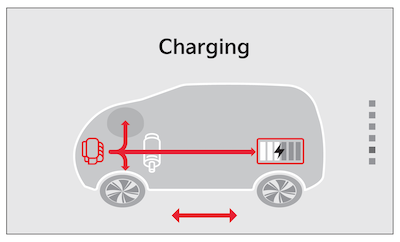

Power Reserve - While the engine powers the vehicle, it is also recharging the Plug-In Hybrid battery.

Engine Brake/Regeneration - The regenerative braking system is recharging the Plug-In Hybrid battery.

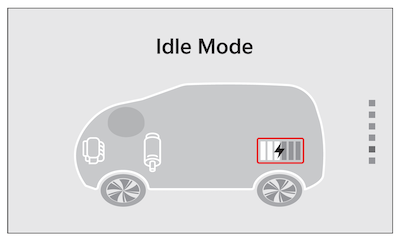

Vehicle Stop - The vehicle’s Plug-In Hybrid system is standing by.

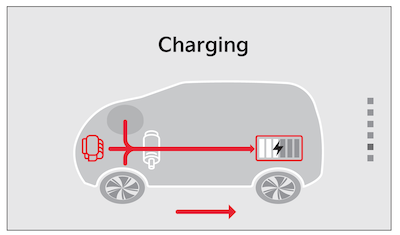

Engine Generation/Regeneration - The engine and the regenerative braking system are both recharging the Plug-In Hybrid battery.

Your vehicle’s Instrument Cluster & indicator light locations may differ from those in the illustrations. For more information on the Instrument Cluster, please refer to section 1 in the Owner’s Manual.

These illustrations are for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
