TPMS Icon The TPMS indicator functions as both the Low Tire Pressure Light and the TPMS Malfunction Indicator.

The TPMS indicator will illuminate if it detects one or more tires are significantly underinflated, the vehicle has a tire installed without a TPMS sensor or the outside temperature becomes significantly lower.

Inflate tire(s) to specifications using an accurate tire pressure gauge to turn off Low Tire Pressure Indicator . See front driver’s door jamb for air pressure specification.

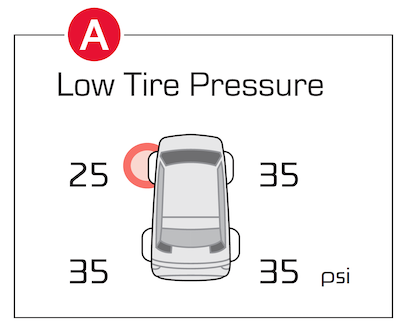

The Low Tire Pressure Position Indicator is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated.

When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate. See the dealer for service.

Quick Tips:

Even with TPMS, tire pressure should be checked manually at least once a month. Only adjust tire pressure on “cold tires” that have been sitting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
For proper maintenance and optimal fuel economy, maintain the recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
In significant drop in temperature can cause tire pressures to drop, which may activate the TMPS light. Manually confirm tire pressures after significant changes in temperature or altitude

Reminders:

Check the recommended tire pressure label located on the left side of the driver’s door jamb, visible when the door is open
Consult your dealer for service if the Low Tire Pressure Light remains illuminated after inflating your tire(s)
Personal electronic devices (such as laptops, wireless chargers, remote start systems, etc.) may interfere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
