3D SURROUND VIEW MONITOR (SVM)*

Surround View Monitor (SVM) is a parking support system that is designed to show the areas around the front, rear, left and right sides of the vehicle, as well as a 3D view of the vehicle via four cameras displayed onto the infotainment screen.

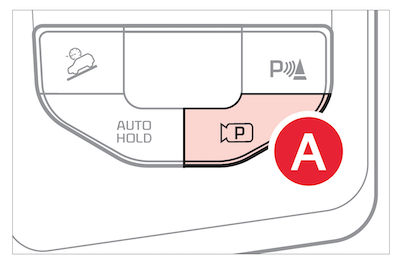

To turn on the Surround View Monitor press the Parking/View button . Press the button again to turn off the function

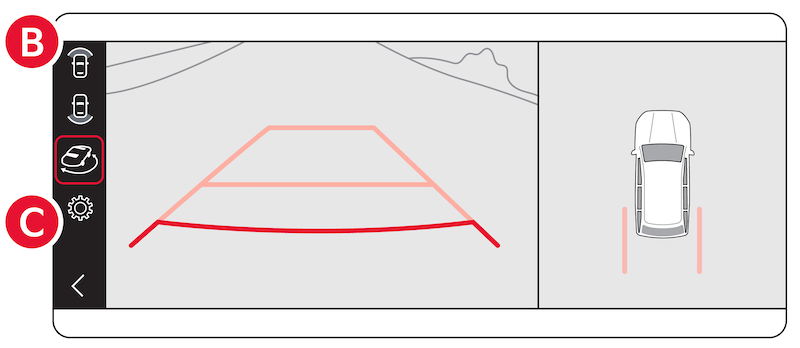

Other view modes can be selected by touching the view icons on the Surround View Monitor screen

Quick Tips:

  • With SVM Auto On selected, SVM will turn on automatically and the camera view will display on the Infotainment System whenever the vehicle is in Drive or Reverse and traveling at speeds below 6 mph
  • To automatically reduce audio volume during operation: Press the SETUP button to go to VEHICLE SETTINGS on the Infotainment System. Press VEHICLE, DRIVER ASSISTANCE, and under WARNING METHODS, you can turn PARKING SAFETY PRIORITY on or off
  • The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/View button is pressed

Reminders:

  • The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance
  • While the SVM is active, and Parking Safety Priority is selected in the User Settings / Vehicle Settings, the volume will be lowered on all audio modes

*See LEGAL page for legal information.

Certain features are available on select Kia models.

Images are for illustrative purposes only and may not reflect actual feature or operation.

When engaged, Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay attention and directly check the left/right and rear.

See section 7 in the Owner’s Manual for more information.
