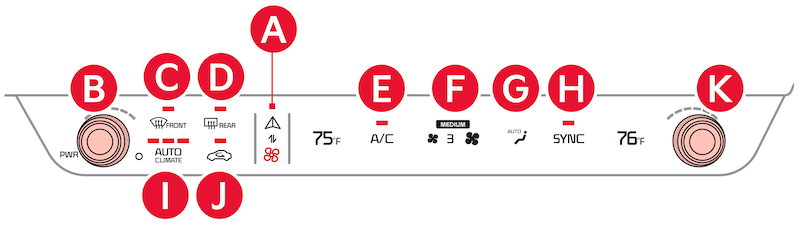

AUTOMATIC CLIMATE CONTROL

Infotainment System / Climate Control mode switching button

  1. Press to toggle between Infotainment System and Climate Control Modes.
  2. Press and hold to set the default mode.

Driver’s temperature control knob

Front windshield defroster button

Rear window defroster button

Air conditioning button*

Fan speed control buttons

Mode selection button

SYNC button

Automatic Climate Control button

Air intake control button

Passenger’s temperature control knob

Climate Control Auto Function
  1. Press AUTO to select Full Auto Operation - The Auto setting automatically controls the airflow modes, fan speeds, air intake and air conditioning according to the temperature setting selected and the ambient condition
  2. Set desired Temperature
  3. Press SYNC to sync the left and right temperature control

Defrost Outside Windshield:

  1. Set Temperature to Hot
  2. Press the Front Defrost button

Defog Inside Windshield:

  1. Set Fan Speed to highest position or to desired temperature
  2. Set Temperature to highest position
  3. Press the Front Defrost button
Air Flow Modes

To select Air Flow Modes, press the mode selection button to cycle to the desired mode:

Quick Tips:

  • Defrost mode activates A/C and opens Fresh Air Vent to help dehumidify the air and improve Defroster performance
  • During Auto Operation, the A/C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity
  • Keep inside glass as clean as possible to reduce window fogging
Auto Defogging System (ADS)

Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield. The system will automatically change to defrost mode when needed.

Auto Defogging is set on by default and will operate when the Climate Control system is on. To cancel Auto Defogging, press the Front Defrost button  for three seconds when the ignition is on (ADS OFF icon will illuminate).

To turn Auto Defogging on again, press the Front Defrost button again for three seconds.

Reminders:

  • Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility
  • When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
  • Cold or warm ambient air may flow in through vents if Recirculated Air button is not pressed on (LED lit)
  • Pressing any button during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control or SYNC Temperature Control

Certain features are available on select Kia models.

Your Automatic Climate Control System may differ from the illustration. Images are for illustrative purposes only and may not reflect actual feature or operation.

Refer to section 5 in the Owner's Manual for more information.
