HIGHWAY DRIVING ASSIST 2 (HDA2)*

HDA2 Assist is designed to detect lanes and vehicles ahead, help maintain the distance from the vehicle ahead and the set speed, and center the vehicle in the lane while driving on certain highways/ freeways.

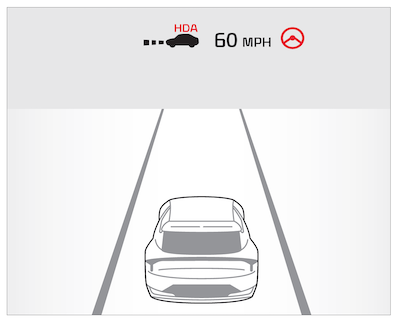

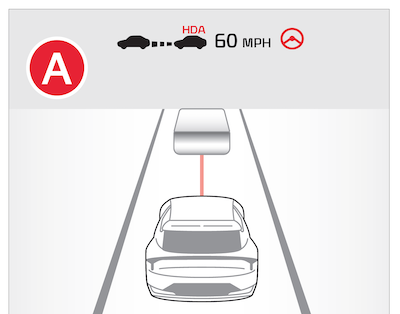

When HDA2 is activated and the conditions are met, the Instrument Cluster indicator will illuminate green. If the conditions are not met, HDA2 will be in standby mode and the indicator light will illuminate gray. When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA2 indicator illuminated green .

Hands-off Warning - If the driver takes their hands off the steering wheel for several seconds, a warning message will appear on the Instrument Cluster and an audible warning will sound. If you keep taking your hands off the steering wheel, then the Emergency Stop will activate. Emergency Stop system maintains the car in the center of the road and assists in stopping through deceleration control.

HDA2 Settings:

Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the Engine Start/Stop button* is in the ON position

To enable HDA2:

Quick Tips:

To adjust the WARNING VOLUME:

  • Press the SETUP button to go to VEHICLE SETTINGS on the Infotainment System.
  • Press VEHICLE, DRIVER ASSISTANCE, and under WARNING METHODS, you can adjust WARNING VOLUME, and turn HAPTIC WARNING and DRIVER SAFETY PRIORITY on or off

Adjusting the Warning Methods or Volume will adjust settings for other driver assistance systems

Reminders:

  • When vehicle power is cycled, the system returns to its previous state, on or off
  • If the driver changes the speed while in automatic speed setting mode, it deactivates and enters a manual mode

*See LEGAL page for legal information. This feature may not be available on all Kia models.

When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on certain federal highways. Always drive safely and use caution.

See section 7 in the Owner’s Manual for more detailed information, limitations and conditions.
