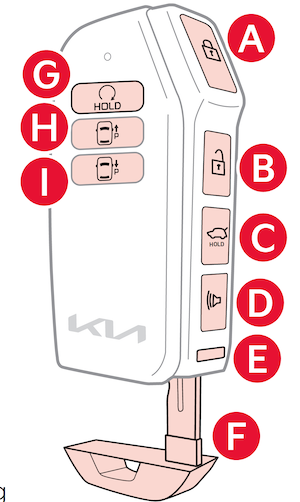

Press to lock All Doors (all doors must be closed to lock)

Press to unlock Driver’s Door. Press twice in 4 seconds to unlock All Doors

Power Liftgate: Press and hold for Power Liftgate to open automatically. Press again at any time to stop. Press and hold again to automatically close

Manual Liftgate: Press and hold to unlock the Liftgate and then manually open

Press and hold for more than a one second for Panic Alarm. To turn off Alarm, press any button

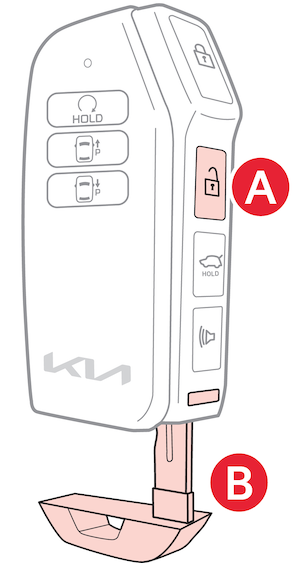

Press to release Mechanical Key

Remote Start: Lock the doors by pressing the door lock button within 32 feet distance from the vehicle. Within four (4) seconds of pressing the door lock button , press and hold the Remote Start button for more than two (2) seconds to start the vehicle. To stop the Remote Start operation, press the button again. If driver does enter vehicle within ten minutes of starting the vehicle, the engine will automatically turn off

REMOTE SMART PARKING ASSIST (RSPA):

To park or exit a parking space remotely,  as needed, see instructions in REMOTE SMARE PARKING ASSIST.

Driver’s Door Lock/Unlock button :

• Press button once to unlock Driver’s Door

• Press again within 4 seconds to unlock All Doors

• Press again to lock All Doors

Mechanical Key :

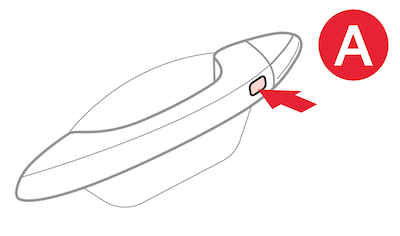

1. Pull out door handle

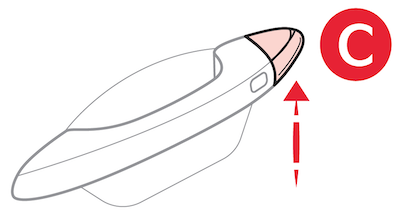

2. Remove door handle keyhole cover with Mechanical Key by pressing up into slot as shown

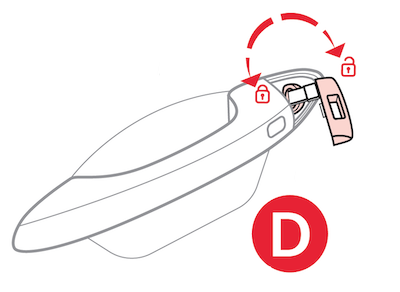

3. Insert Mechanical Key and turn left to unlock Driver’s Door. Turn left twice within 4 seconds to unlock all doors

4. Insert Mechanical Key and turn right to lock Driver’s Door to lock all doors

5. Return keyhole cover to its original position. Use the Mechanical Key to turn Child-Protector Rear Door Lock.
