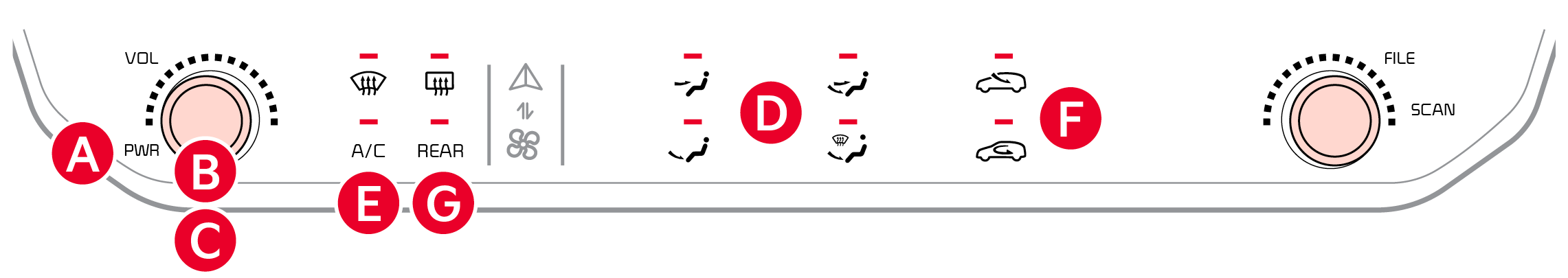

MANUAL CLIMATE CONTROL*

Temperature control knob

Max A/C position (push)

Front fan speed control knob

Mode selection knob

Air conditioning button

Air intake control buttons

Rear window defroster button

Defrost Outside and/or Inside Windshield:
  1. Set Fan Speed to the highest position
  2. Turn temperature control to Hot
  3. Rotate Mode selection knob to the front defrost position
Air Flow Modes

To select Air Flow Modes, select one of the Air Flow Modes

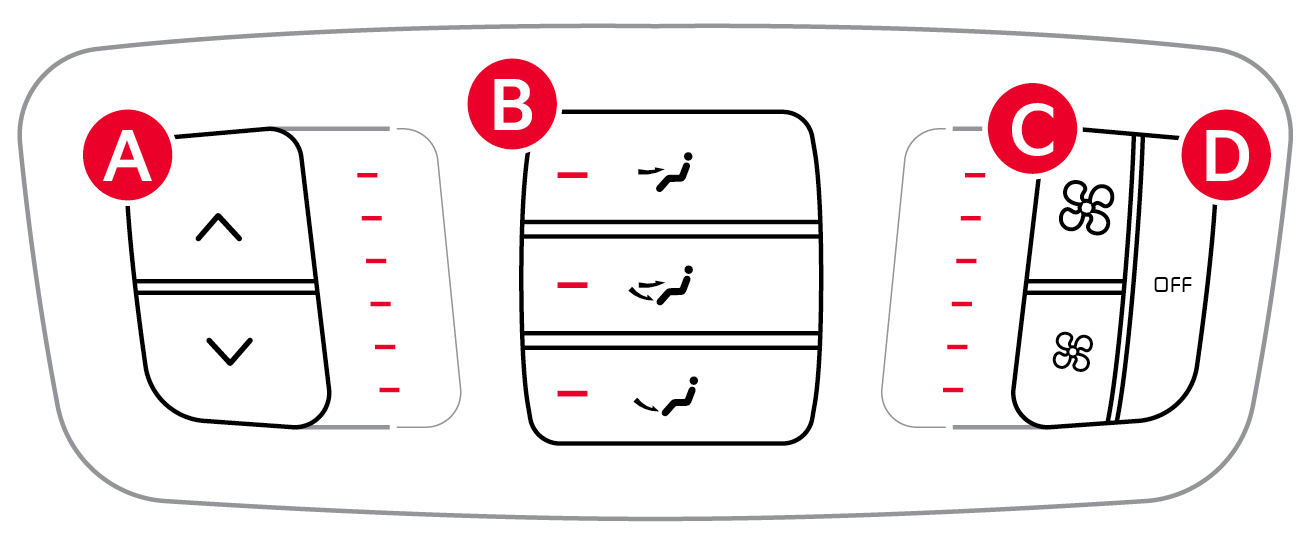

Rear Manual Climate Controls:

Temperature control buttons

Mode selection buttons

Rear fan speed control buttons

Rear climate off button

Quick Tips:

  • Defrost Mode opens Fresh Air Vent to help dehumidify the air and improve Defroster performance
  • MAX A/C Mode automatically engages Recirculated Air
  • Keep inside glass as clean as possible to reduce window fogging

Reminders:

  • Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit).
  • Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility

*See LEGAL page for legal information

Certain features are available only on select Kia models.

Your Manual Climate Control system may differ from those in the illustrations. See section 4 in the Owner’s Manual for more details.
