Lane Keeping Assist is designed to detect lane markings (or road edges) and may warn the driver if the vehicle leaves the lane without using the turn signal and may assist with steering to prevent the vehicle departing from its travel lane. When turned on, the Instrument Cluster indicator will initially illuminate white. It will remain white when the vehicle is traveling slower than 40 mph or when LKA does not detect the lane markers. When LKA detects the lane markers and can assist the steering, the Lane Safety icon will illuminate green.

If LKA detects that you are moving outside of your lane, LKA may provide steering inputs, to try to prevent the vehicle from moving outside its lane. If the vehicle continues to move outside of the lane, LKA may give a warning sound and a haptic warning, and it may display Lane Departure Warning on the Instrument Cluster.

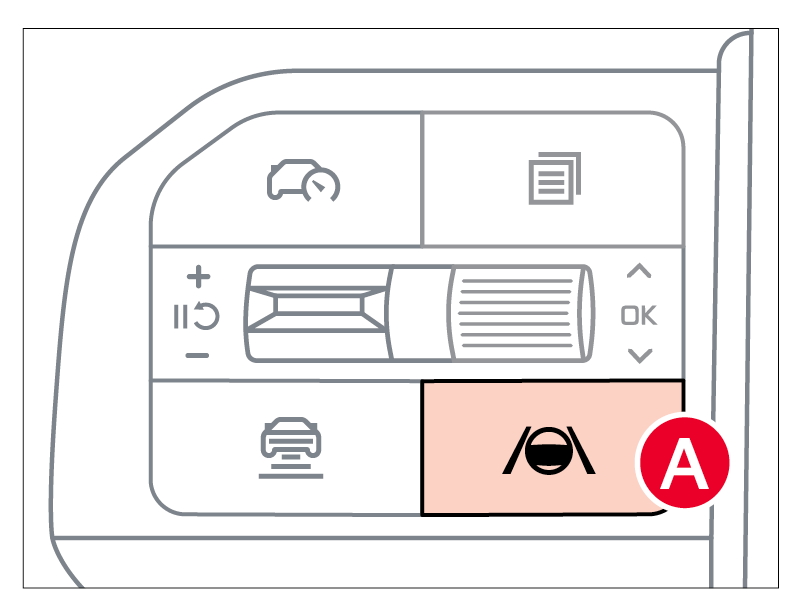

• Press and hold the Lane Safety button or the Lane Driving Assist button to turn LKA on or off. You can also enable LKA in Vehicle Settings in the Infotainment System

• Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button is in the ON position
• To enable in Vehicle Settings in the Infotainment System – Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. In Driver Assistance select Driving Safety and then Lane Safety

• To enable in Vehicle Settings in the Infotainment System –

Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. In Driver Assistance select Driving Safety and then Lane Safety

LKA will operate under the following conditions:

• The vehicle speed exceeds approximately 40 mph

• LKA detects one side of the lane markers the vehicle is traveling in

• The vehicle is between the lane markers

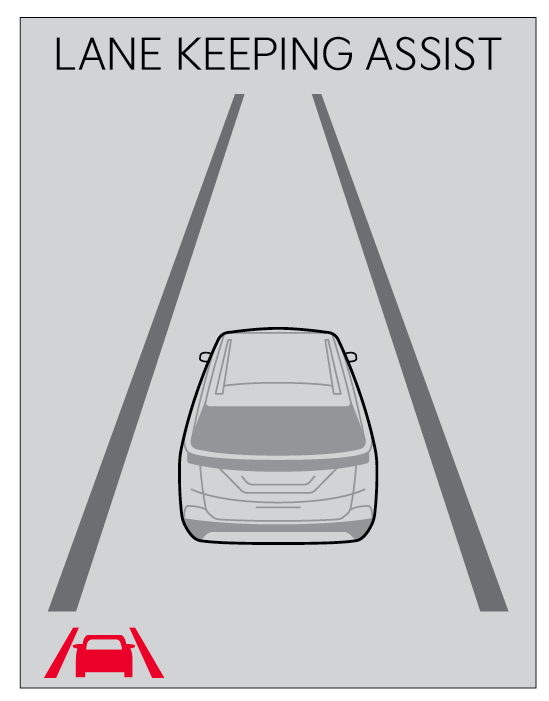

When the front-view camera does not detect the lane traveling in, the lanes are gray

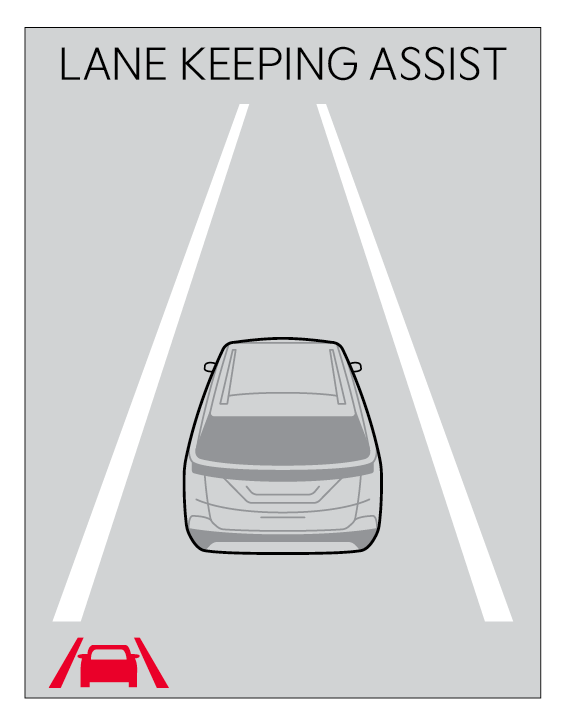

When the front-view camera detects the lane traveling in, both lanes are white

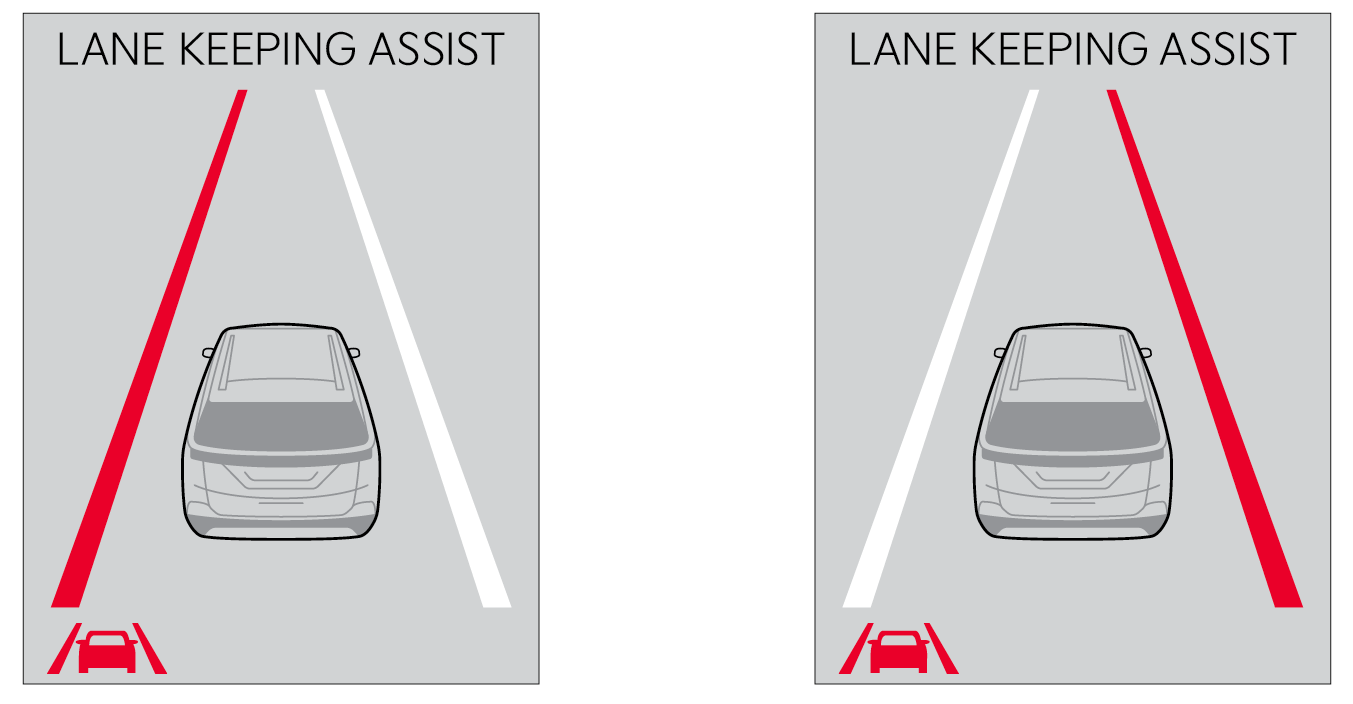

When the front-view camera detects the vehicle moving outside of the lane it is traveling in, the vehicle crossing line will blink either on the left or right lane (as shown in both images above)
