HEAD-UP DISPLAY (HUD) - 12" DISPLAY*

Augmented Reality Head-Up Display (HUD) is a semi-transparent display that is designed to project certain information from the Instrument Cluster and Navigation System onto the windshield glass.

When in augmented reality mode, HUD shows:

Turn By Turn (TBT) navigation information
Traffic information
Speedometer information
Surrounding vehicle information
SCC set speed information
SCC vehicle distance information
Blind-spot Safety information
Lane Safety information
Highway Driving Assist information
Highway Auto Speed Change information
Lane Following Assist information
Augmented Reality Mode information for TBT, Lane Safety, Front Vehicle indicator, Leading Vehicle Departure Alert, Highway Lane Change

Head-Up Display (HUD) Settings:

Drivers can adjust the HUD settings from the Vehicle Settings.

Press the SETUP key/button on the Infotainment System.
Select VEHICLE, then
HEAD-UP DISPLAY. HUD settings include:

Display height
Rotation
Brightness
Content selection

Reminders:

The HUD image on the windshield glass may not be visible in these cases:

The driver seating position is outside the HUD viewing area
The driver is wearing polarized sunglasses
There is an object covering the HUD
The driver is driving on a wet road
There is excessive lighting inside or outside the vehicle
Modifications made to the windshield, such as tinting or other aftermarket treatments, could affect the HUD. When replacing the front windshield glass of vehicles equipped with the HUD, owners must replace it with windshield glass designed for HUD operation. Otherwise, duplicated images may be displayed on the windshield glass
If Turn By Turn navigation information is selected as HUD content, TBT information will not be displayed on the LCD

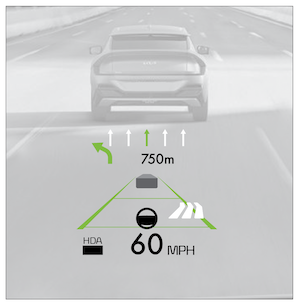

These illustrations are for demonstration purposes only. Some messages may appear differently.

When engaged, HUD is a supplemental system. Do not solely rely on the system. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.

See section 5 in the Owner’s Manual for more information about HUD and other relevant sections for additional vehicle features.
