Before Jump-Starting:

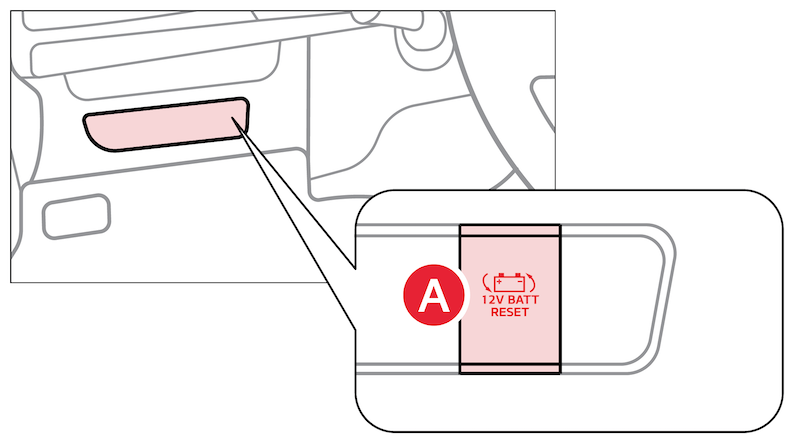

1. If the vehicle appears to have a dead battery, first press the 12V Battery Reset button
. Then start the vehicle within 15 seconds, by pressing the brake and turning the ignition on or pressing the Engine Start/Stop button
2. If the vehicle does not start after completing the above steps, then jump-start the vehicle (as described below)
, then the power of the 12V battery is automatically disconnected to save any additional dischargeJump-Starting:

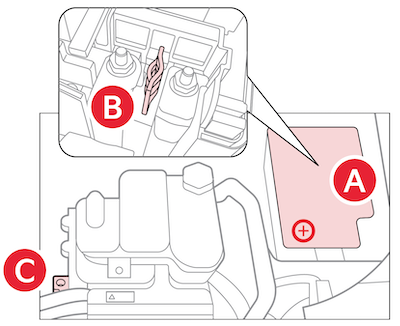

1. Remove the fusebox cover under the front hood
2. The {+} jump start terminal
is located in the fuse box; the suitable ground point
is located in the engine compartment (See Owner’s Manual for detailed description)
3. Connect cables coming from the battery booster source in the following order and disconnect in reverse order:
– Connect the {+} clamp of your jumper cable to the {+} jump start terminal
– Connect the {-} clamp of your jumper cable to the suitable ground point

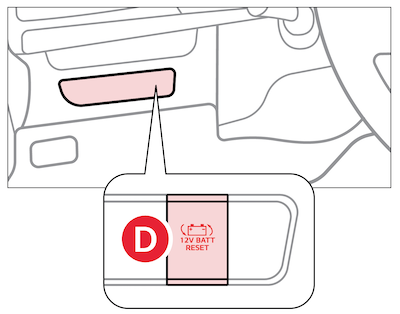

4. Press the 12V Battery Reset button
then immediately start the vehicle by pressing the brake and turning the ignition on or pressing the Engine Start/Stop button
Jump-starting your vehicle can be dangerous if done incorrectly. Follow the above jump-starting procedures to avoid harm to yourself or damage to your vehicle and any of its components. You should also consult your Owner’s Manual for further detailed instructions for jump-starting your vehicle. If in doubt, we strongly recommend that you have a competent technician or towing service jump-start your vehicle.
For illustrative purposes only. Your actual display, buttons and/or features may vary.
