Hybrid Instrument Cluster Overview
Tachometer/Power gauge
Speedometer
Hybrid battery SOC gauge
Odometer
Distance to empty
Transmission shift indicator
Outside temperature gauge
Warning and indicator lights
Hybrid mode indicator
Fuel gauge
Arrow direction indicates the side of the vehicle the fuel door is located

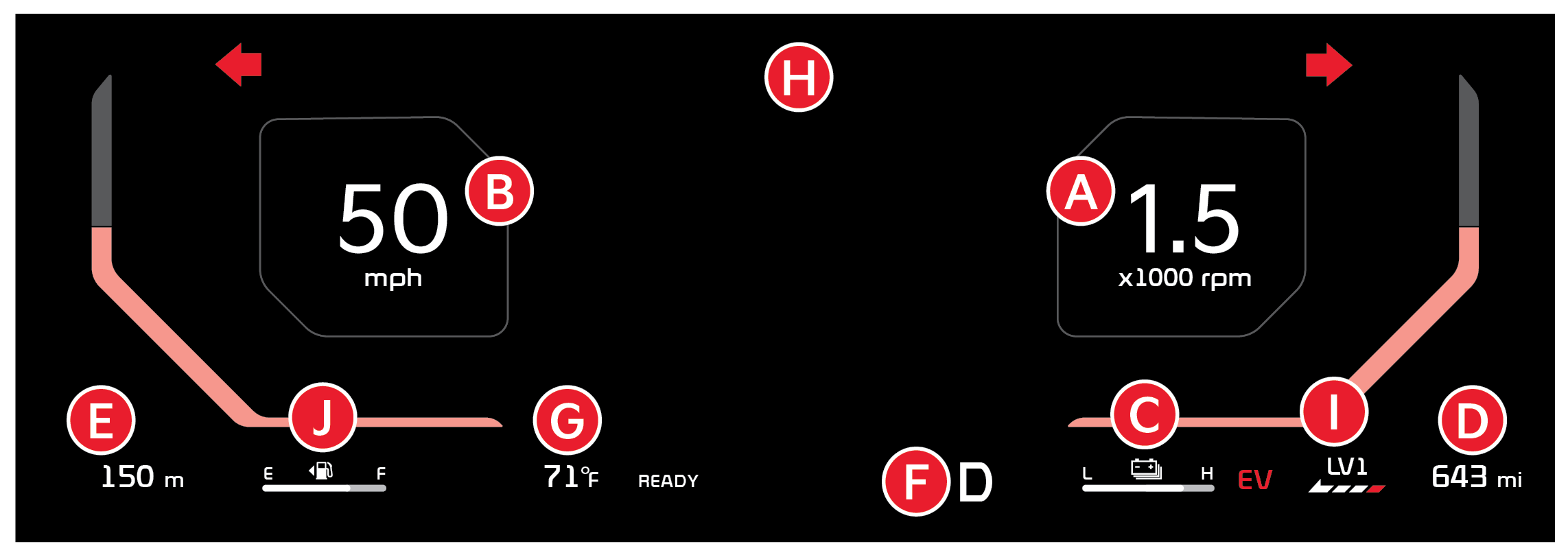

(Type A)

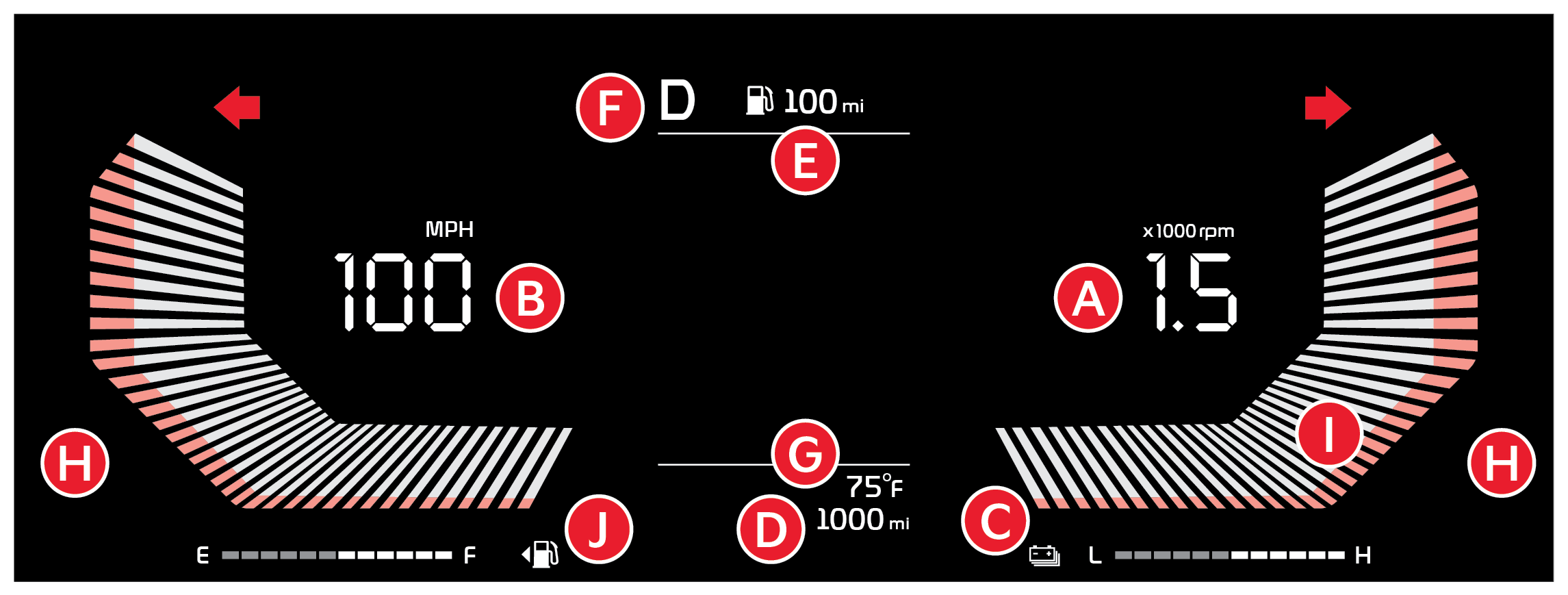

(Type B)
Certain features are available only on select Kia models.
Your vehicle’s Instrument Cluster & indicator light locations may differ from those in the illustrations. For more information on the Instrument Cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
