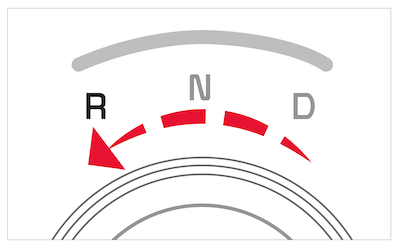

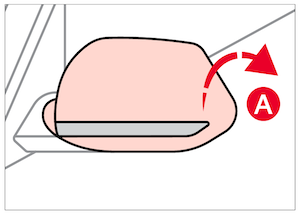

When the gear shift lever is moved into R (Reverse), the selected outside rearview mirror will rotate downward to aid in reverse parking.

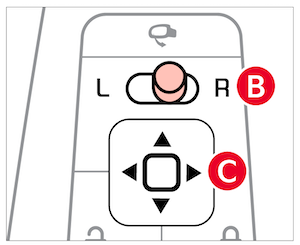

To turn ON the Reverse Parking Aid Function, move the outside rearview mirror switch to either the L (Left) or R (Right) mirror position . The selected mirror will move downward when the vehicle is in Reverse.

To turn OFF the Reverse Parking Aid Function, move the switch () to the center position.

(Buttons panel located on Driver's Door )

The outside rearview mirror(s) will automatically return to their original position when:

• The Engine Start/Stop button is in the OFF or ACC position
• The gear shift lever is moved to any position except R (Reverse)
• The outside rearview mirror switch is moved to the center position

Adjusting the Reverse Parking Aid Angle

The downward angle of each outside rearview mirror can be adjusted by:

1. Shifting the vehicle into P (Park) and select the mirror to adjust using the L or R switch ()
2. Press the brake pedal and shift into R (Reverse).
3. After the mirror moves downward, use the mirror adjustment switch () to set the desired angle.
4. Shift out of R (Reverse) and return the mirror switch () to the center position to save the new setting.

Repeat the procedure for the opposite mirror.
