Panoramic Sunroof with Power Sunshade
PANORAMIC SUNROOF OPERATION WITH POWER SUNSHADE

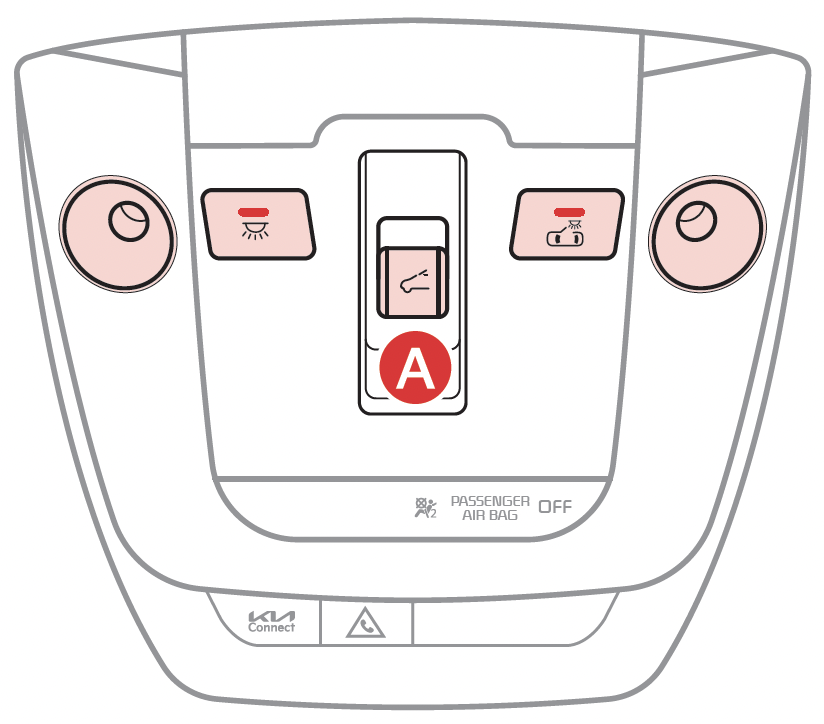

The sunroof operation is controlled through a multidirectional switch. The ignition or Engine Start/Stop button needs to be in the ON position to operate the sunroof.
To slide the power sunshade and sunroof:
- Auto Open – Slide the switch
backward to the farthest position and release - Auto Close – Slide the switchforward to the farthest position and release
To slide the power sunshade only:
- Auto Open - Slide the switchpartially backward to the first detent position and release
- Auto Close - Slide the switchpartially forward to the first detent position and release
Slide the sunroof (with power sunshade open):
- Open - Slide the switchbackward to the first detent position and release
- Close - Slide the switchforward to the first detent position and release to close sunroof glass only. Slide the lever backward to the farthest position and release to close sunroof glass and sunshade
To tilt the sunroof:
- Raise - Push switchupward
- Lower - Push switchdownward
Quick Tips:
- To stop the sunroof/sunshade at any position, push or pull the Sunroof control switch in any direction.
Reminders:
- If the ignition is turned off with the Sunroof not fully closed, the Instrument Cluster will display a warning message and a chime will sound for a few seconds
- Power sunshade needs to remain OPEN while sunroof is open
- Power sunshade cannot slide when the sunroof is in the tilt position or tilt while in an open or slide position
- Do not adjust the power sunroof or sunshade while driving. This could result in loss of control of the vehicle
- When closing, be mindful of any objects or persons
Certain features are available on select Kia models.
Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation. Refer to section 4 in the Owner’s Manual for more information.
