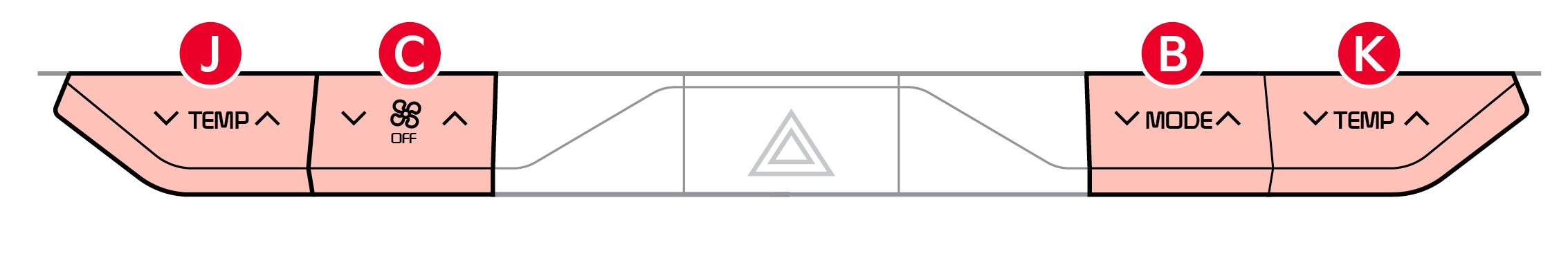

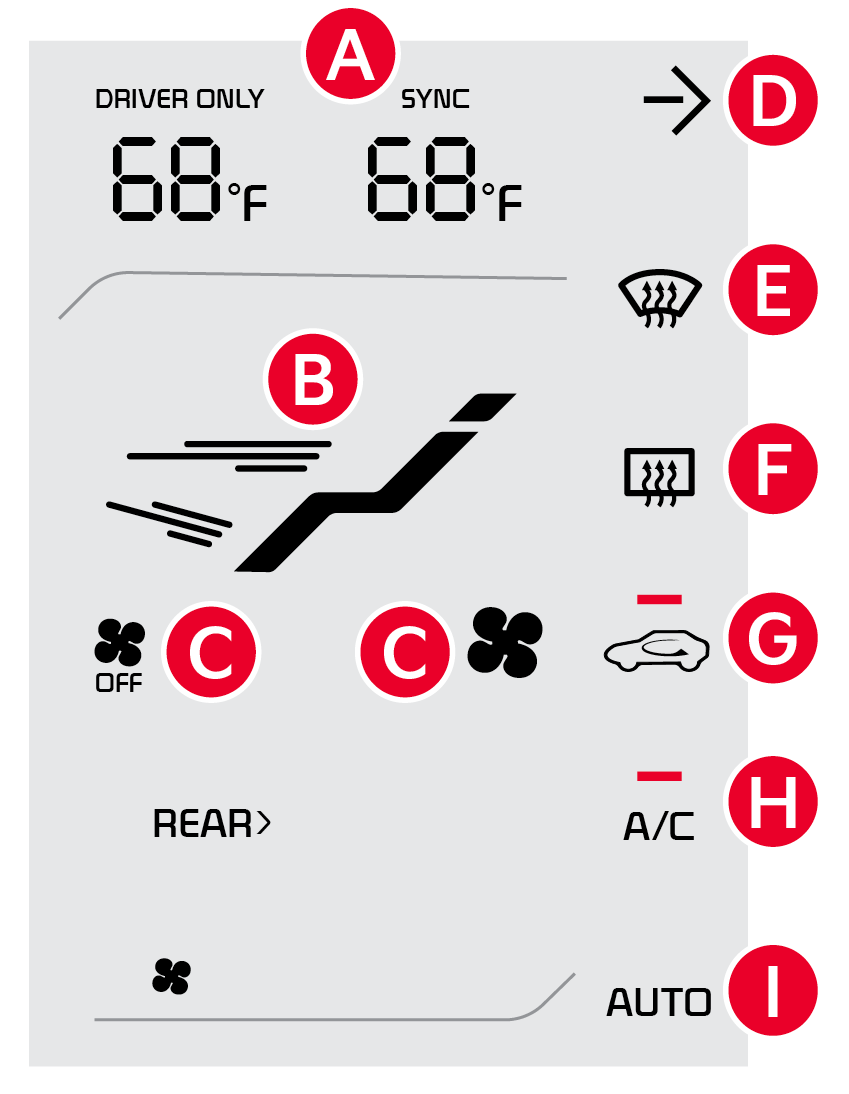

AUTOMATIC CLIMATE CONTROL

SYNC Driver/Passenger temperatures

Mode Selection icon

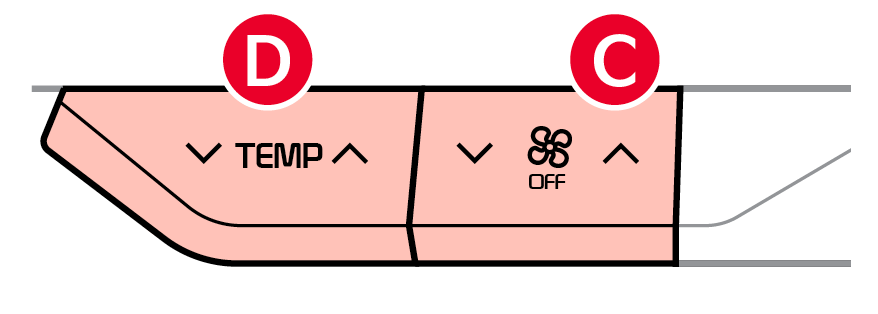

Fan Speed Controls

Press to expand and view the Climate Control System on the Infotainment screen

Front Windshield Defroster

Rear Window Defroster

Air Intake Control

Air Conditioning On/Off

Automatic Control

Driver Temperature Controls

Passenger Temperature Controls

Climate Control Auto Function

Press AUTO to select full auto operation. In AUTO mode the driver and front passenger have full control of their own temperature zones. The mode, fan speed, air intake and air conditioning will activate and adjust accordingly to achieve the temperature settings for each zone.

To set temperatures:

Tri-Zone Climate Control

Pressing the SYNC button synchronizes all climate control zones (driver, passenger, and rear) to the driver’s temperature control.

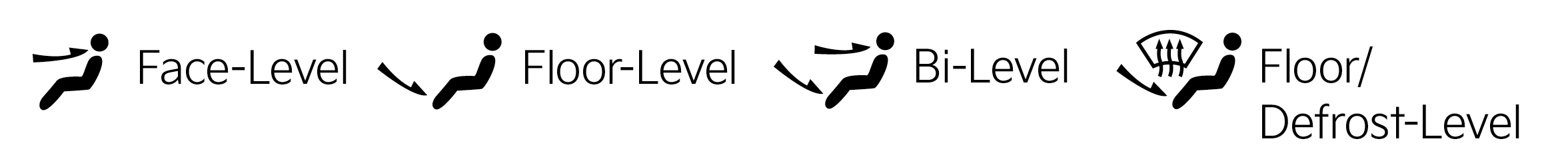

Air Flow Modes

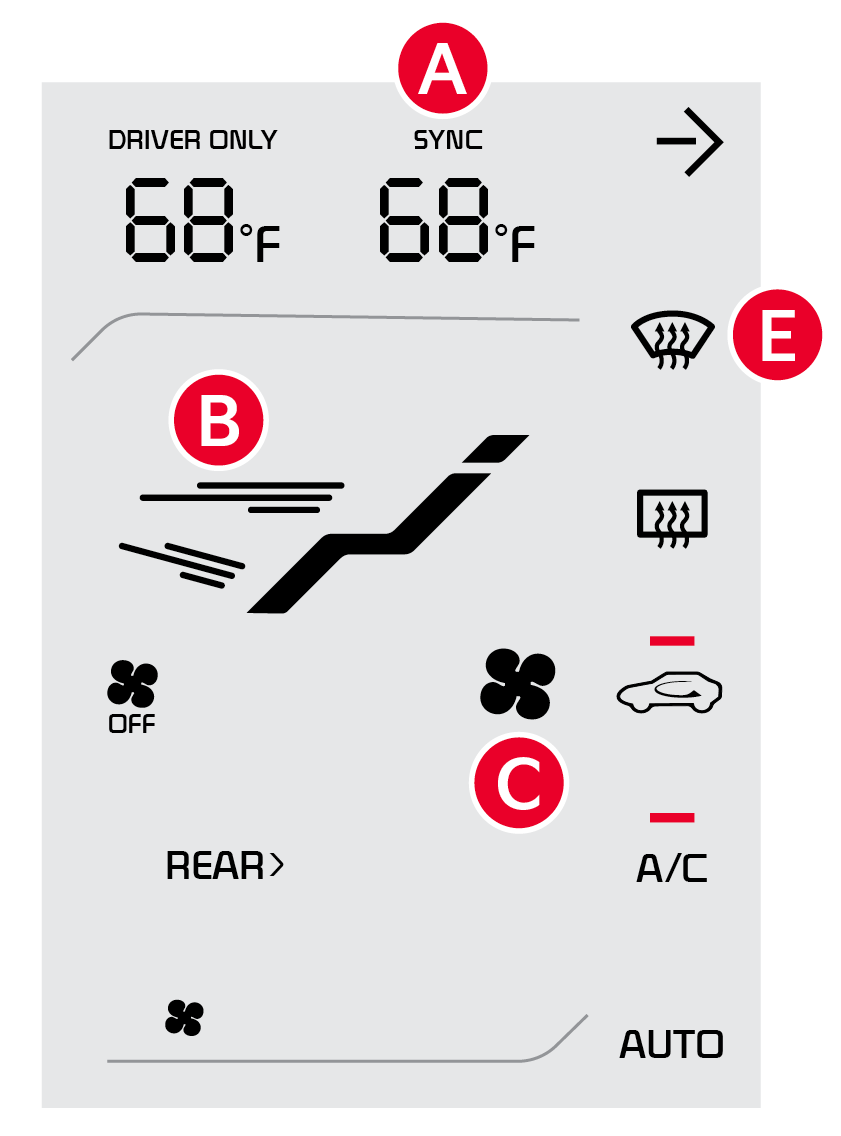

To select air flow modes, press the Mode Select button : Defrost Outside Windshield:

  1. Set fan speed to the highest position
  2. Set temperature to hot
  3. Press the front defrost button to defog Inside Windshield

Quick Tips:

When the Climate Control System’s temperature is turned up to highest heat setting or lowest cool setting, the Seat Warmers / Ventilated Seats turn on automatically.

Reminders:

  • Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility
  • When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
  • Cold or warm ambient air may flow in through vents if Recirculated Air button is not pressed on (LED lit)

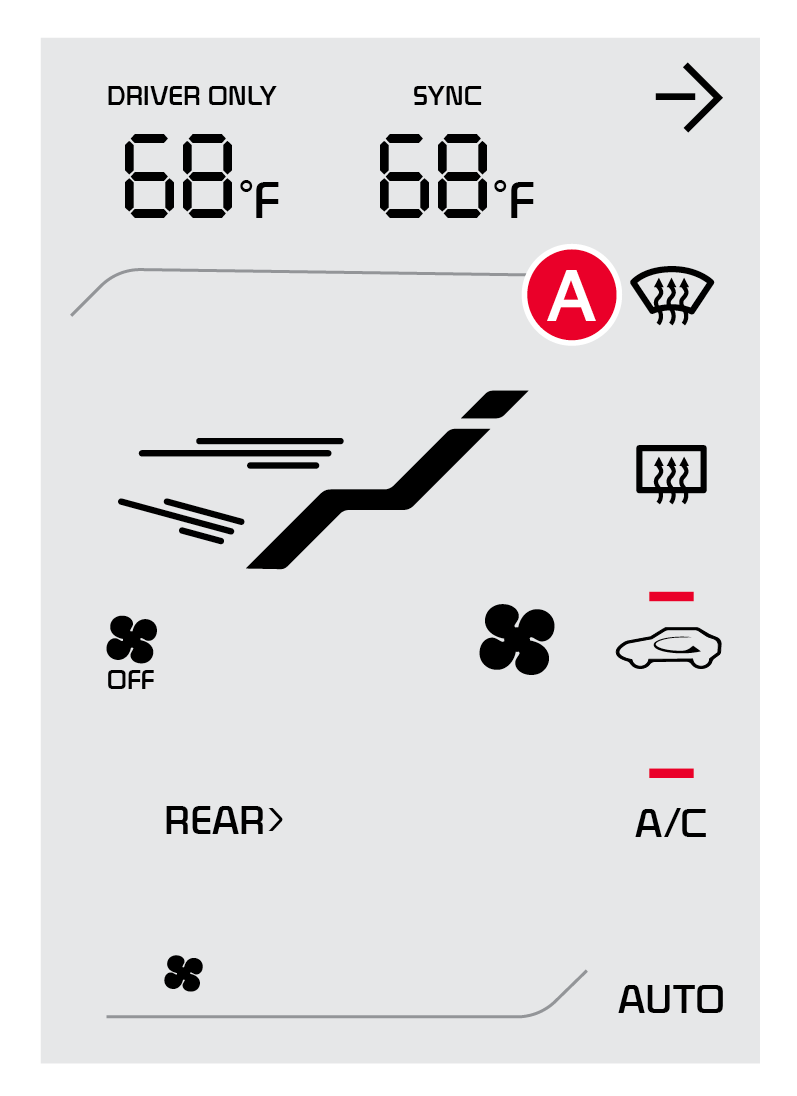

Auto Defogging System (ADS)

Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture. When the Auto Defogging System is on, it will automatically change to defrost mode when needed.

The ADS is set on by default. To cancel ADS, press the Front Defrost button for three seconds, when the ignition is on (ADS OFF icon will illuminate). To turn ADS on again, press the Front Defrost button  for three seconds.

Quick Tips:

  • Defrost mode activates A/C and opens Fresh Air Vent to help dehumidify the air and improve defog performance
  • During Auto Operation, the A/C indicator will not illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity
  • Keep inside glass as clean as possible to reduce window fogging

Reminders:

  • Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility
  • Pressing any button during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
  • When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
  • Cold or warm ambient air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)

Refer to section 5 in the Owner’s Manual for more information. Button configuration may vary. Images are for illustrative purposes only and may not reflect actual feature or operation.
