Rear View Monitor (RVM)*

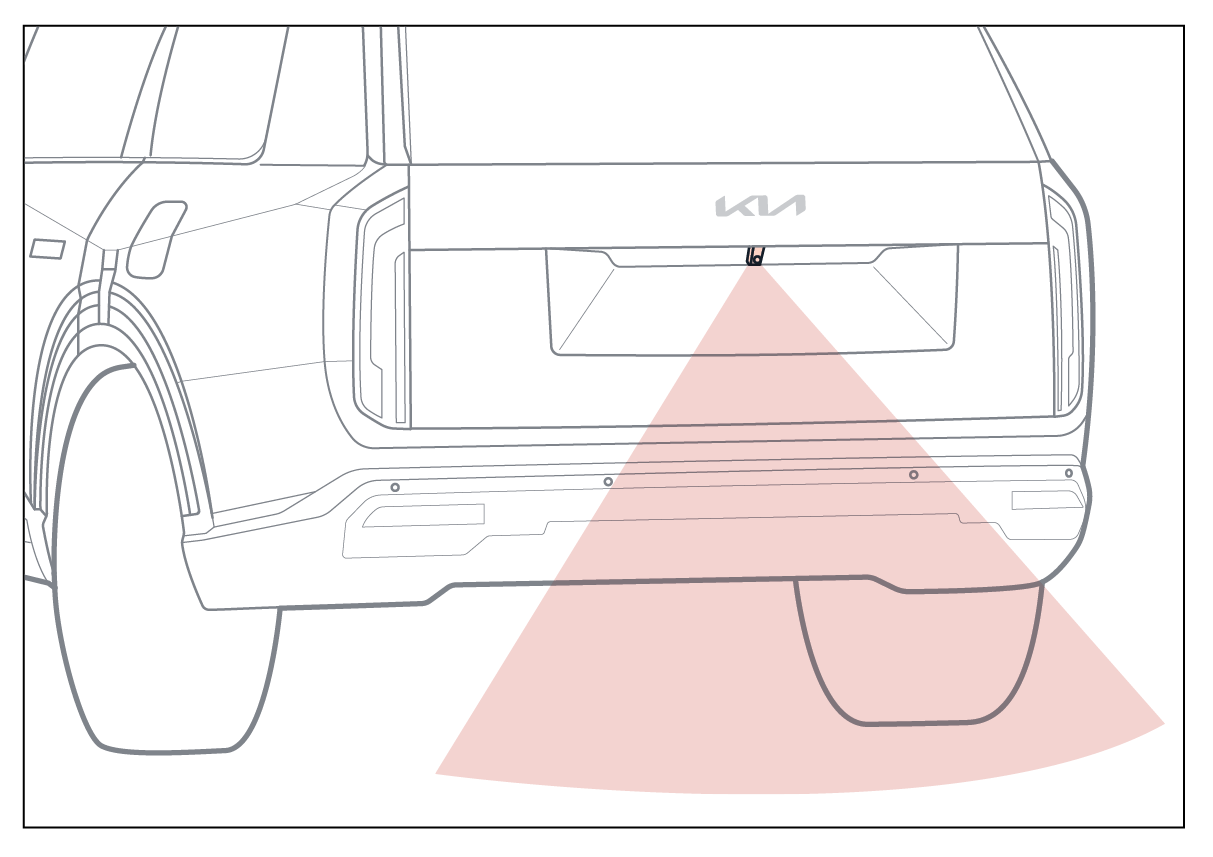

Rear View Monitor displays the area behind the vehicle to assist when parking or backing up.

Rear View Monitor activates when the Engine Start/Stop button is in the ON position, and the gear shift lever is in the R (Reverse) position.

RVM activates when the:

Ignition or the ENGINE START/STOP button (Green Light) is in the ON position
Rotary Dial Shifter is in the R (Reverse) position

If Extended Rear View Monitor is enabled in the settings, RVM will remain on when shifting from R (Reverse) to N (Neutral) or D (Drive), until the vehicle exceeds approximately 6mph, or by pressing the Parking/View button or the gear shift is moved into P (Park).

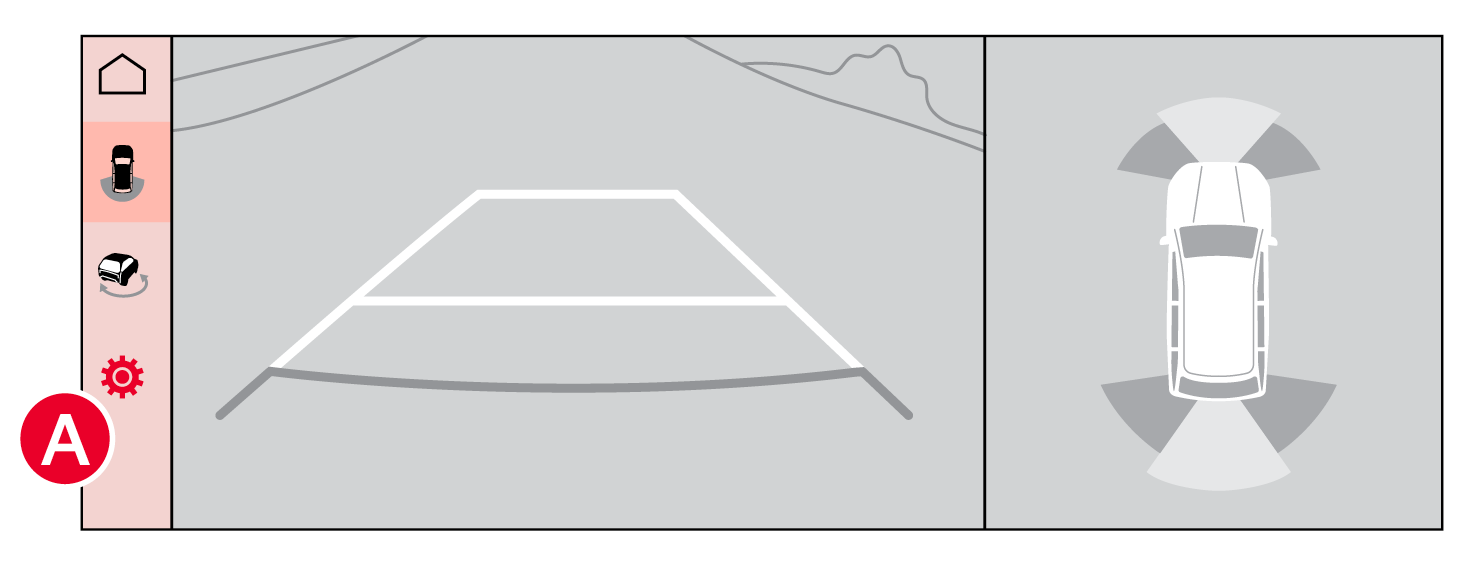

If Rear View Parking Guide Lines is enabled, the top view parking guide lines will be displayed.

RVM Settings:

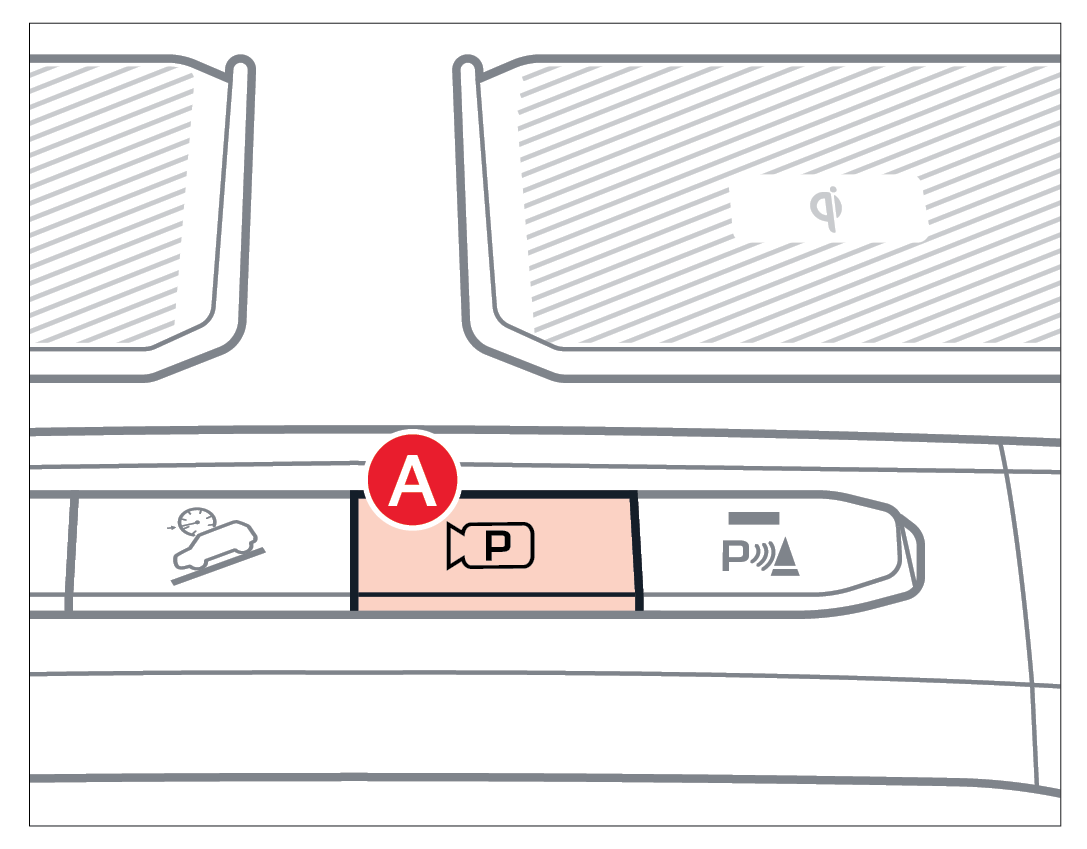

To access the settings, press the onscreen settings icon while RVM is operating. You can select:

Display Contents to change the settings of the Rear View Parking Guide lines and the Extended Rear View Monitor
Display Settings to change the screen’s brightness or contrast

To adjust the Warnings Methods:

The Warning Methods for the Rear View Monitor can be adjusted in the Infotainment System
Select Setup, then select Vehicle
Select Driver Assistance, and then choose Warning Methods

Quick Tips:

Adjusting the Warning Timing and Warning Methods or Volume will adjust settings for the other driver assistance systems

Reminders:

Rear View Monitor is not a substitute for proper and safe backing-up procedures
Rear View Monitor may not display every object behind the vehicle
Always drive carefully and use caution when backing up
Through normal use and after inclement weather or washing, the rear camera may become dirty. Use a clean, microfiber cloth to remove any dirt, debris or spots that may have accumulated on the lens
If activated, while the Rear View Monitor is active the volume may be lowered on all audio modes

*See LEGAL page for legal information

This feature may not be available on all Kia models.

Rear View Monitor is not a substitute for proper and safe backing-up procedures. Rear View Monitor may not display every object behind the vehicle. Always drive safely and use caution when backing up.

Images are for illustrative purposes only and may not reflect actual feature or operation. See section 7 in the Owner’s Manual for more information.
